Step1: Product

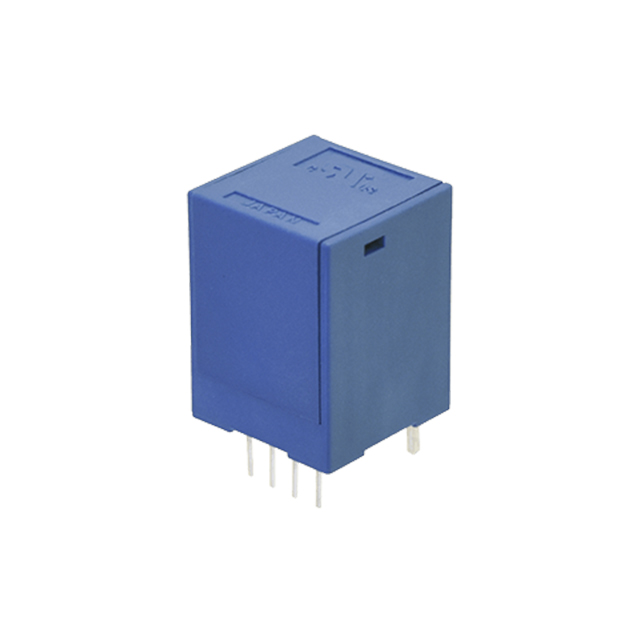

Same Sky (Formerly CUI Devices) CS1505U
Image shown is a representation only
Manufacturer
Manufacturer No
CS1505U
Package
Module
Packaging
Tray
Description
CURRENT SENSOR OL 15A
Detailed Description
Current Sensor 15A 1 Channel Open Loop Unidirectional Module
DataSheet
Mfr
Same Sky (Formerly CUI Devices)
Output
Ratiometric, Voltage
Series
CSXX05U
Accuracy
±4.2%
Frequency
DC ~ 40kHz
Linearity
±0.5%
Packaging
Tray
Part Status
Active
Sensor Type
Open Loop
Polarization
Unidirectional
For Measuring
AC
Mounting Type
Through Hole
Response Time
7µs
Package / Case
Module
Voltage - Supply
4.75V ~ 5.25V
Current - Sensing
15A
Number of Channels
1
Base Product Number
CS1505
Operating Temperature
-10°C ~ 75°C
Current - Supply (Max)
25mA
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Output | Ratiometric, Voltage |
| Series | CSXX05U |
| Accuracy | ±4.2% |
| Frequency | DC ~ 40kHz |
| Linearity | ±0.5% |
| Packaging | Tray |
| Part Status | Active |
| Sensor Type | Open Loop |
| Polarization | Unidirectional |
| For Measuring | AC |
| Mounting Type | Through Hole |
| Response Time | 7µs |
| Package / Case | Module |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Sensing | 15A |
| Number of Channels | 1 |
| Base Product Number | CS1505 |
| Operating Temperature | -10°C ~ 75°C |
| Current - Supply (Max) | 25mA |
