Step1: Product

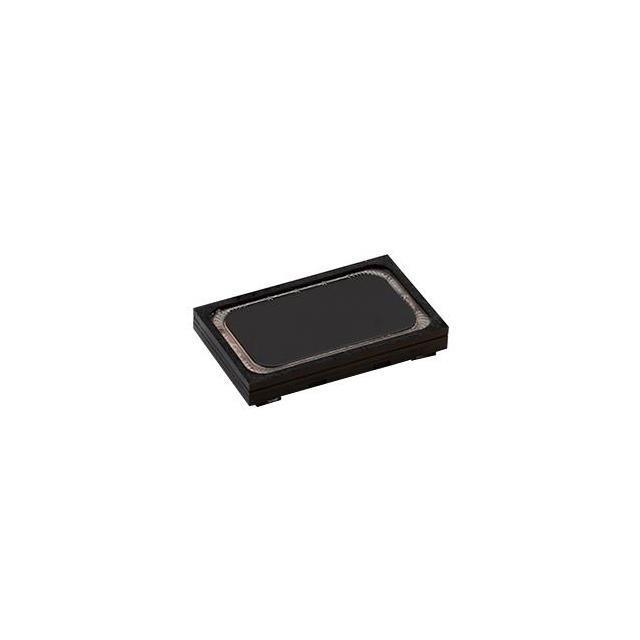

Same Sky (Formerly CUI Devices) CMS-321437-24SP-X8
Image shown is a representation only
Manufacturer
Manufacturer No
CMS-321437-24SP-X8
Packaging
Tray
Description
SPEAKER, 32 X 14 MM, 3.7 MM DEEP
Detailed Description
4 Ohms General Purpose Speaker 2 W 840 Hz ~ 20 kHz Top Rectangular
Datasheet
Type
General Purpose
Shape
Rectangular
Series
CMS
Impedance
4 Ohms
Packaging
Tray
Technology
Magnetic
Power - Max
2.2 W
Termination
Solder Pads
Manufacturer
Same Sky (Formerly CUI Devices)
Port Location
Top
Power - Rated
2 W
Frequency Range
840 Hz ~ 20 kHz
Material - Cone
Polyetheretherketone (PEEK)
Efficiency - dBA
103.00
Size / Dimension
0.906" L x 0.551" W (23.00mm x 14.00mm)
Distortion Rating
10% @ 2kHz
Efficiency - Type
Sound Pressure Level (SPL)
Material - Magnet
Nd-Fe-B-N38
Ingress Protection
IPX8
Efficiency - Testing
100mm
Height - Seated (Max)
0.146" (3.70mm)
Operating Temperature
-20°C ~ 70°C
Frequency - Self Resonant
1.05kHz
| Attribute | Value |
|---|---|
| Type | General Purpose |
| Shape | Rectangular |
| Series | CMS |
| Impedance | 4 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Power - Max | 2.2 W |
| Termination | Solder Pads |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Port Location | Top |
| Power - Rated | 2 W |
| Frequency Range | 840 Hz ~ 20 kHz |
| Material - Cone | Polyetheretherketone (PEEK) |
| Efficiency - dBA | 103.00 |
| Size / Dimension | 0.906" L x 0.551" W (23.00mm x 14.00mm) |
| Distortion Rating | 10% @ 2kHz |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Material - Magnet | Nd-Fe-B-N38 |
| Ingress Protection | IPX8 |
| Efficiency - Testing | 100mm |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency - Self Resonant | 1.05kHz |
