Step1: Product

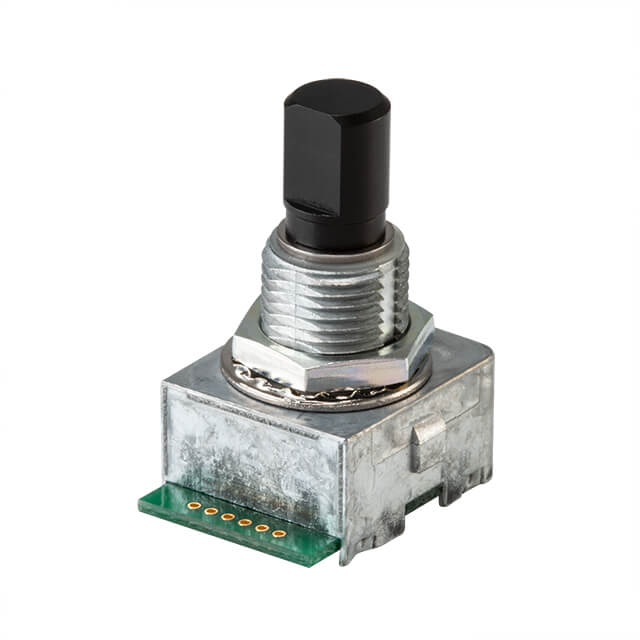

Same Sky (Formerly CUI Devices) C14D16P-A2PA
Image shown is a representation only
Manufacturer
Manufacturer No
C14D16P-A2PA
Packaging
Tray
Description
ENC OPTCL QUAD RGT ANG SOLDR LUG
Detailed Description
Rotary Encoder Optical 16 Quadrature (Incremental) Right Angle
DataSheet
Detent
Yes
Series
C14
Packaging
Tray
Orientation
Right Angle
Output Type
Quadrature (Incremental)
Part Status
Active
Encoder Type
Optical
Manufacturer
Same Sky (Formerly CUI Devices)
Actuator Type
6mm Dia Round End
Mounting Type
Panel Mount
Built in Switch
Yes
Voltage - Supply
4.75V ~ 5.25V
Termination Style
Solder Lug
Base Product Number
C14D16P
DigiKey Programmable
Not Verified
Pulses per Revolution
16
Rotational Life (Cycles Min)
1M
| Attribute | Value |
|---|---|
| Detent | Yes |
| Series | C14 |
| Packaging | Tray |
| Orientation | Right Angle |
| Output Type | Quadrature (Incremental) |
| Part Status | Active |
| Encoder Type | Optical |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Actuator Type | 6mm Dia Round End |
| Mounting Type | Panel Mount |
| Built in Switch | Yes |
| Voltage - Supply | 4.75V ~ 5.25V |
| Termination Style | Solder Lug |
| Base Product Number | C14D16P |
| DigiKey Programmable | Not Verified |
| Pulses per Revolution | 16 |
| Rotational Life (Cycles Min) | 1M |
