Step1: Product

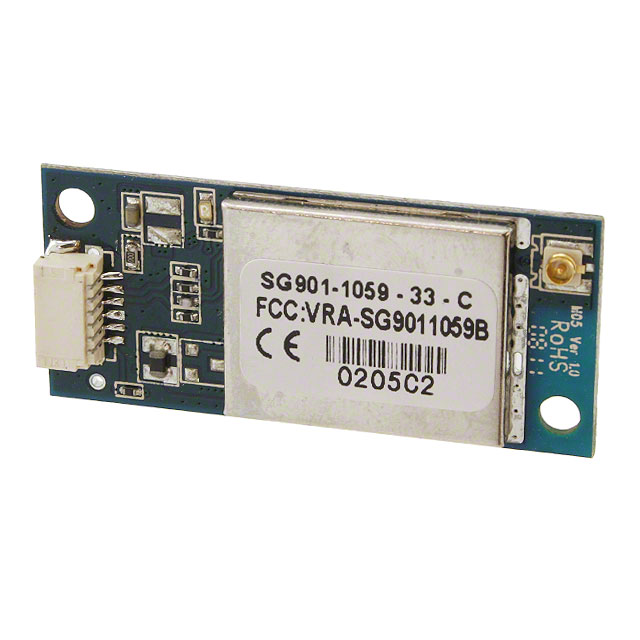

Sagrad Inc. SG901-1059B-3.3-C
Image shown is a representation only
Manufacturer
Manufacturer No
SG901-1059B-3.3-C
Package
Module
Packaging
Tray
Description
RF TXRX MODULE WIFIIPEX SMD
Detailed Description
WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, I-PEX Surface Mount
DataSheet
Mfr
Sagrad Inc.
Protocol
802.11b/g/n
Data Rate
150Mbps
Frequency
2.4GHz
Packaging
Tray
Modulation
BPSK, CCK, OFDM, QPSK
Part Status
Obsolete
Sensitivity
-85dBm
Antenna Type
Antenna Not Included, I-PEX
Mounting Type
Surface Mount
Package / Case
Module
Power - Output
20dBm
Voltage - Supply
3.3V
Serial Interfaces
USB
RF Family/Standard
WiFi
Current - Receiving
110mA (Max)
DigiKey Programmable
Not Verified
Operating Temperature
-15°C ~ 65°C
Current - Transmitting
170mA (Max)
| Attribute | Value |
|---|---|
| Mfr | Sagrad Inc. |
| Protocol | 802.11b/g/n |
| Data Rate | 150Mbps |
| Frequency | 2.4GHz |
| Packaging | Tray |
| Modulation | BPSK, CCK, OFDM, QPSK |
| Part Status | Obsolete |
| Sensitivity | -85dBm |
| Antenna Type | Antenna Not Included, I-PEX |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Power - Output | 20dBm |
| Voltage - Supply | 3.3V |
| Serial Interfaces | USB |
| RF Family/Standard | WiFi |
| Current - Receiving | 110mA (Max) |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -15°C ~ 65°C |
| Current - Transmitting | 170mA (Max) |
