Step1: Product

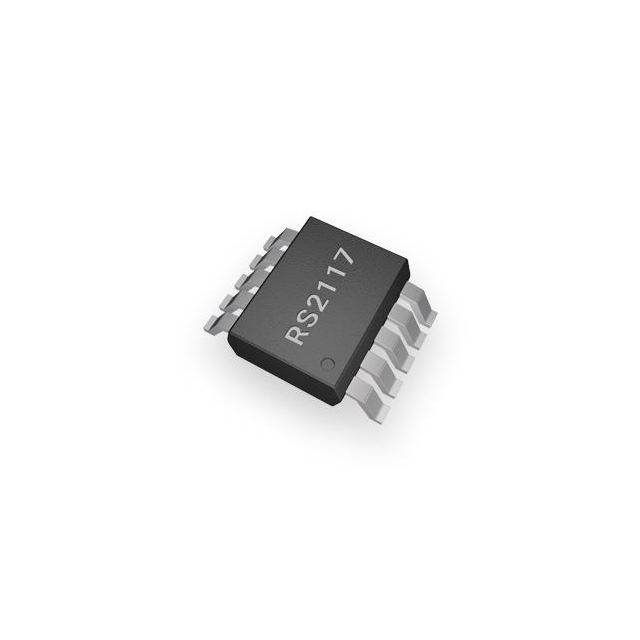

Runic Technology RS2117YN
Image shown is a representation only
Manufacturer
Manufacturer No
RS2117YN
Package
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC SWITCH SPDT X 2 7OHM 10MSOP
Detailed Description
2 Circuit IC Switch 2:1 7Ohm 10-MSOP
DataSheet
Crosstalk
-52dB @ 10MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Runic Technology
Mounting Type
Surface Mount
-3db Bandwidth
400MHz
Package / Case
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Switch Circuit
SPDT
Charge Injection
15pC
Number of Circuits
2
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
10-MSOP
On-State Resistance (Max)
7Ohm
Switch Time (Ton, Toff) (Max)
15ns, 10ns (Typ)
Voltage - Supply, Single (V+)
2.5V ~ 5.5V
Current - Leakage (IS(off)) (Max)
1µA
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
150mOhm (Typ)
Channel Capacitance (CS(off), CD(off))
10pF
| Attribute | Value |
|---|---|
| Crosstalk | -52dB @ 10MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Runic Technology |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 400MHz |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Switch Circuit | SPDT |
| Charge Injection | 15pC |
| Number of Circuits | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 10-MSOP |
| On-State Resistance (Max) | 7Ohm |
| Switch Time (Ton, Toff) (Max) | 15ns, 10ns (Typ) |
| Voltage - Supply, Single (V+) | 2.5V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
