Step1: Product
ROHM Semiconductor SCT2280KEC

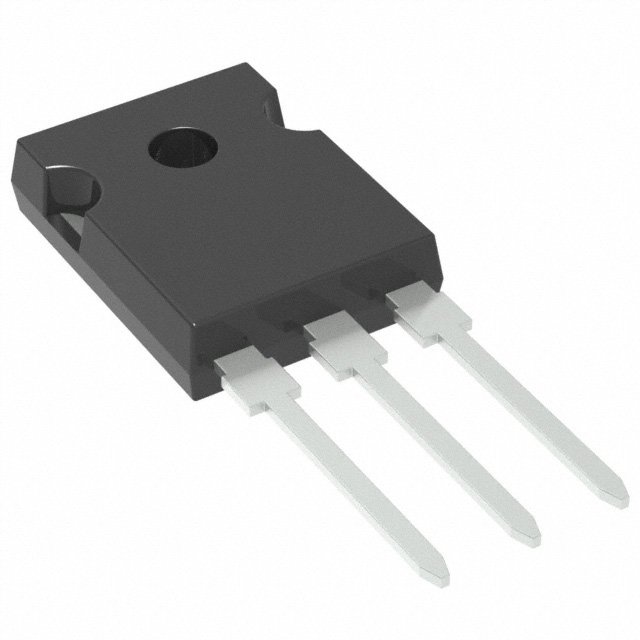

Image shown is a representation only
Manufacturer
Manufacturer No
SCT2280KEC
Package
TO-247-3
Packaging
Tube
Description
SICFET N-CH 1200V 14A TO247
Detailed Description
N-Channel 1200 V 14A (Tc) 108W (Tc) Through Hole TO-247
DataSheet
Mfr
Rohm Semiconductor
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+22V, -6V
Technology
SiCFET (Silicon Carbide)
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
TO-247-3
Vgs(th) (Max) @ Id
4V @ 1.4mA
Base Product Number
SCT2280
Operating Temperature
175°C (TJ)
Rds On (Max) @ Id, Vgs
364mOhm @ 4A, 18V
Power Dissipation (Max)
108W (Tc)
Supplier Device Package
TO-247
Gate Charge (Qg) (Max) @ Vgs
36 nC @ 18 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
667 pF @ 800 V
Drive Voltage (Max Rds On, Min Rds On)
18V
Current - Continuous Drain (Id) @ 25°C
14A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Rohm Semiconductor |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +22V, -6V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Vgs(th) (Max) @ Id | 4V @ 1.4mA |
| Base Product Number | SCT2280 |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 364mOhm @ 4A, 18V |
| Power Dissipation (Max) | 108W (Tc) |
| Supplier Device Package | TO-247 |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 18 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 667 pF @ 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
