Step1: Product

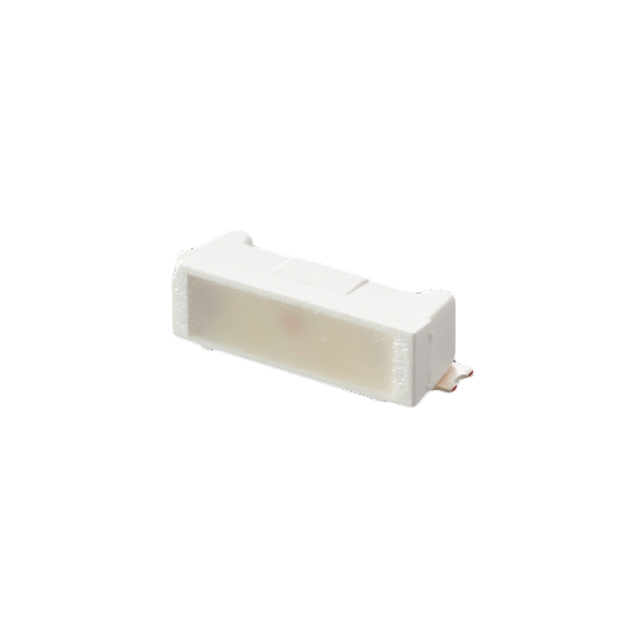

ROHM Semiconductor MSL0104RGBU1
Image shown is a representation only
Manufacturer
Manufacturer No
MSL0104RGBU1
Quantity
537
Availability
In Stock
Package
7-SMD, Flat Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB DIFFUSED 2709 SMD R/A
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.2V Blue 7-SMD, Flat Lead
Datasheet
Mfr
Rohm Semiconductor
Color
Red, Green, Blue (RGB)
Series
MSL0104
Lens Size
5.40mm x 1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
White
Lens Style
Rectangle with Flat Top
Height (Max)
2.15mm
Configuration
Independent
Mounting Type
Surface Mount, Right Angle
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
7-SMD, Flat Lead
Size / Dimension
6.90mm L x 2.20mm W
Lens Transparency
Diffused
Base Product Number
MSL0104
Millicandela Rating
700mcd Red, 1200mcd Green, 400mcd Blue
Wavelength - Dominant
624nm Red, 527nm Green, 470nm Blue
Supplier Device Package
2709 (6922 Metric)
Voltage - Forward (Vf) (Typ)
2.1V Red, 3.3V Green, 3.2V Blue
| Attribute | Value |
|---|---|
| Mfr | Rohm Semiconductor |
| Color | Red, Green, Blue (RGB) |
| Series | MSL0104 |
| Lens Size | 5.40mm x 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 2.15mm |
| Configuration | Independent |
| Mounting Type | Surface Mount, Right Angle |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 7-SMD, Flat Lead |
| Size / Dimension | 6.90mm L x 2.20mm W |
| Lens Transparency | Diffused |
| Base Product Number | MSL0104 |
| Millicandela Rating | 700mcd Red, 1200mcd Green, 400mcd Blue |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Supplier Device Package | 2709 (6922 Metric) |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.2V Blue |
