Step1: Product

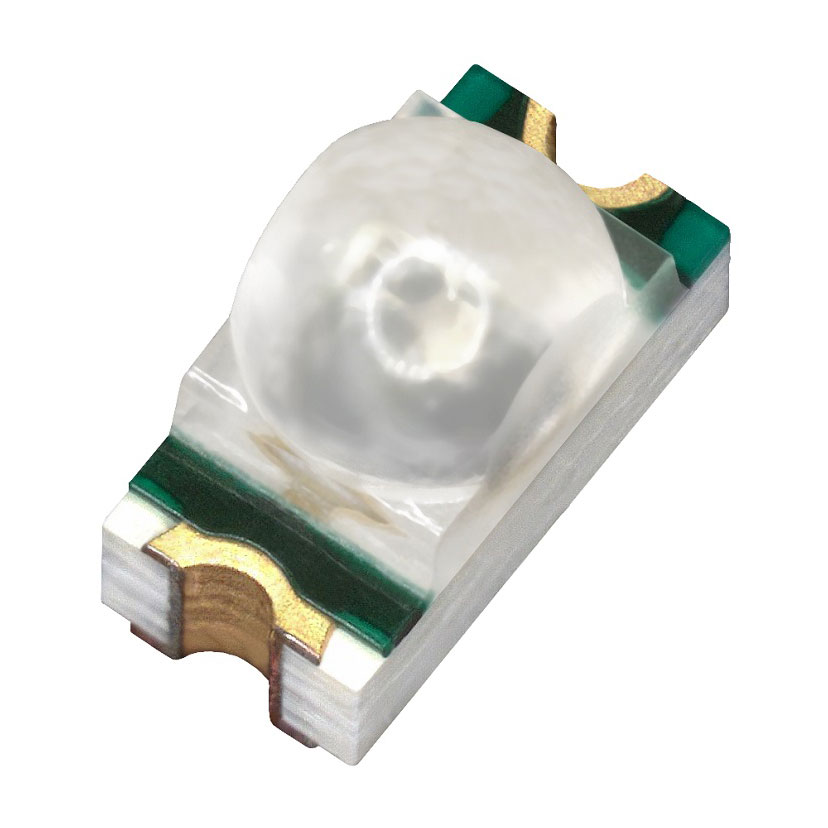

ROHM Semiconductor CSL0901S10T1
Image shown is a representation only
Manufacturer
Manufacturer No
CSL0901S10T1
Quantity
23
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SURFACE MOUNT TYPE SWIR LED: SHO
Detailed Description
Infrared (IR) Emitter 1050nm (1000nm ~ 1100nm) 1.2V 80mA 7.1mW/sr @ 80mA 0603 (1608 Metric)
DataSheet
Type
Infrared (IR)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
1050nm (1000nm ~ 1100nm)
Orientation
Top View
Part Status
Active
Manufacturer
Rohm Semiconductor
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Operating Temperature
-40°C ~ 85°C
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
80mA
Radiant Intensity (Ie) Min @ If
7.1mW/sr @ 80mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 1050nm (1000nm ~ 1100nm) |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Rohm Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 80mA |
| Radiant Intensity (Ie) Min @ If | 7.1mW/sr @ 80mA |
