Step1: Product
Rincon Power HVBD4AAR

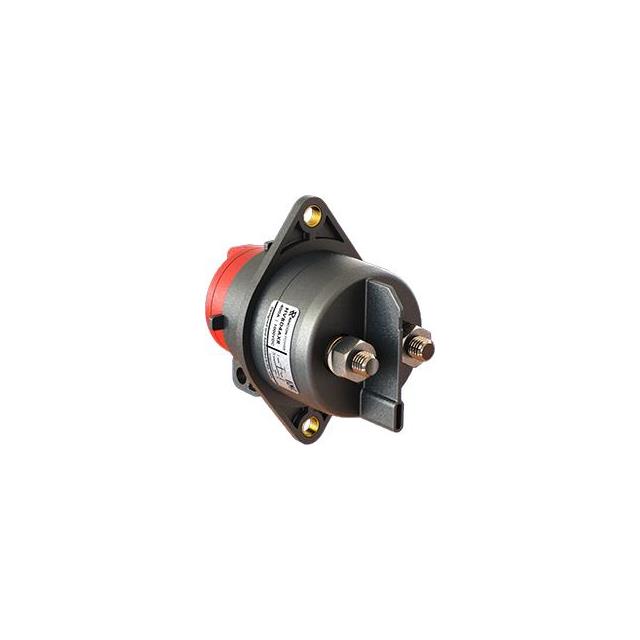

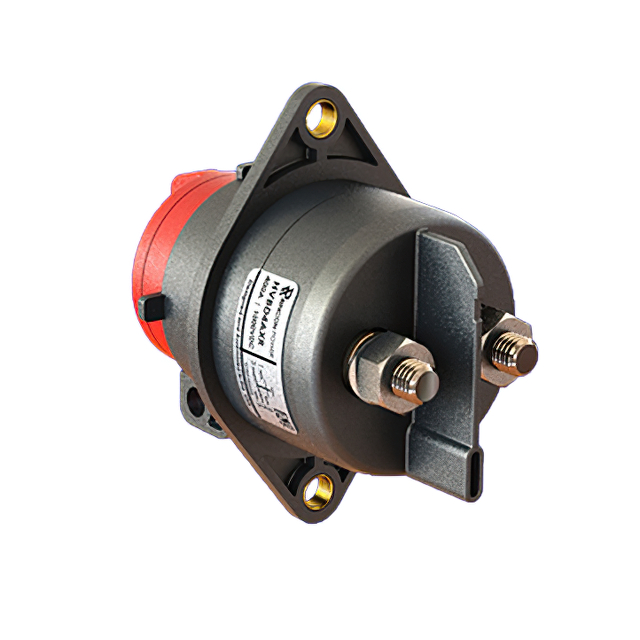

Image shown is a representation only
Manufacturer
Manufacturer No
HVBD4AAR
Packaging
Bulk
Description
400A Batt Disconnct 1500VDC SPST
Detailed Description
Selector Switch 2 Position SPST + SPDT 400A (DC) Panel Mount
DataSheet
Type
Battery Disconnect
Series
HVBD
Circuit
SPST + SPDT
Features
With SPDT Auxiliary Contacts
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Manufacturer
Rincon Power
Mounting Type
Panel Mount
Approval Agency
CE
Switch Function
On-Off
Termination Style
Stud
Ingress Protection
IP69 - Dust Tight, Water Resistant, Waterproof
Depth Behind Flange
61.00mm
Number of Positions
2
Voltage Rating - DC
1500 V
Current Rating (Amps)
400A (DC)
Operating Temperature
-55°C ~ 85°C
Panel Cutout Dimensions
Circular - 68.60mm Dia
| Attribute | Value |
|---|---|
| Type | Battery Disconnect |
| Series | HVBD |
| Circuit | SPST + SPDT |
| Features | With SPDT Auxiliary Contacts |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Manufacturer | Rincon Power |
| Mounting Type | Panel Mount |
| Approval Agency | CE |
| Switch Function | On-Off |
| Termination Style | Stud |
| Ingress Protection | IP69 - Dust Tight, Water Resistant, Waterproof |
| Depth Behind Flange | 61.00mm |
| Number of Positions | 2 |
| Voltage Rating - DC | 1500 V |
| Current Rating (Amps) | 400A (DC) |
| Operating Temperature | -55°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 68.60mm Dia |
