Step1: Product

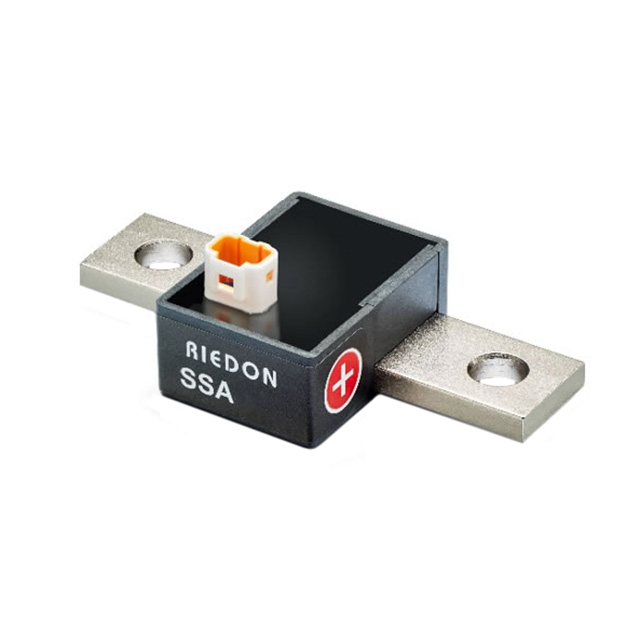

Riedon products by Bourns SSA-250
Image shown is a representation only
Manufacturer
Manufacturer No
SSA-250
Package
Module
Packaging
Bulk
Description
CURRENT SENSOR SHUNT 250A
Detailed Description
Current Sensor 250A 1 Channel Shunt Bidirectional Module
DataSheet
Mfr
Riedon products by Bourns
Output
Ratiometric, Voltage
Series
SSA
Accuracy
±0.1%
Frequency
300kHz
Linearity
±0.1%
Packaging
Bulk
Part Status
Obsolete
Sensor Type
Shunt
Polarization
Bidirectional
For Measuring
DC
Mounting Type
Chassis Mount
Response Time
1.6µs
Package / Case
Module
Voltage - Supply
3V ~ 5.5V
Current - Sensing
250A
Number of Channels
1
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
40mA (Typ)
| Attribute | Value |
|---|---|
| Mfr | Riedon products by Bourns |
| Output | Ratiometric, Voltage |
| Series | SSA |
| Accuracy | ±0.1% |
| Frequency | 300kHz |
| Linearity | ±0.1% |
| Packaging | Bulk |
| Part Status | Obsolete |
| Sensor Type | Shunt |
| Polarization | Bidirectional |
| For Measuring | DC |
| Mounting Type | Chassis Mount |
| Response Time | 1.6µs |
| Package / Case | Module |
| Voltage - Supply | 3V ~ 5.5V |
| Current - Sensing | 250A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 40mA (Typ) |
