Step1: Product

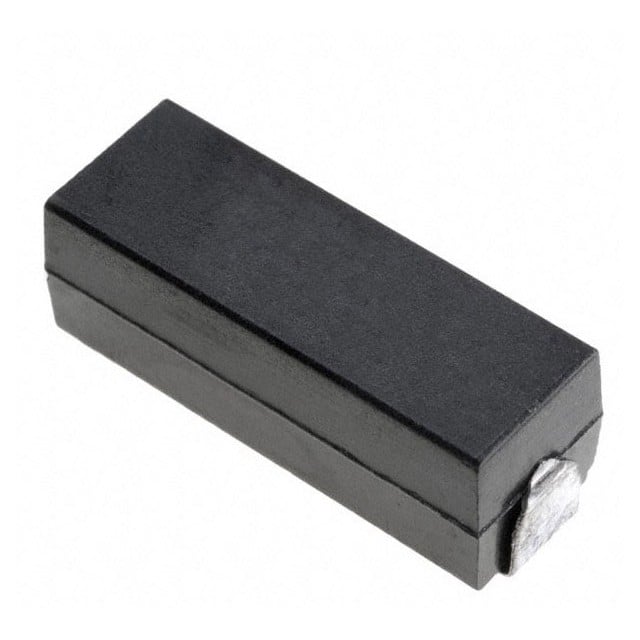

Riedon products by Bourns S5-0R05F1
Image shown is a representation only
Manufacturer
Manufacturer No
S5-0R05F1
Package
8230 J-Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RES 0.05 OHM 1% 4W 8230
Detailed Description
50 mOhms ±1% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
DataSheet
Mfr
Riedon products by Bourns
Series
S
Features
Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Tolerance
±1%
Resistance
50 mOhms
Composition
Wirewound
Part Status
Active
Power (Watts)
4W
Package / Case
8230 J-Lead
Size / Dimension
0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max)
0.319" (8.10mm)
Operating Temperature
-55°C ~ 275°C
Number of Terminations
2
| Attribute | Value |
|---|---|
| Mfr | Riedon products by Bourns |
| Series | S |
| Features | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Tolerance | ±1% |
| Resistance | 50 mOhms |
| Composition | Wirewound |
| Part Status | Active |
| Power (Watts) | 4W |
| Package / Case | 8230 J-Lead |
| Size / Dimension | 0.819" L x 0.296" W (20.80mm x 7.50mm) |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Operating Temperature | -55°C ~ 275°C |
| Number of Terminations | 2 |
