Richtek USA Inc. RT9715HGF

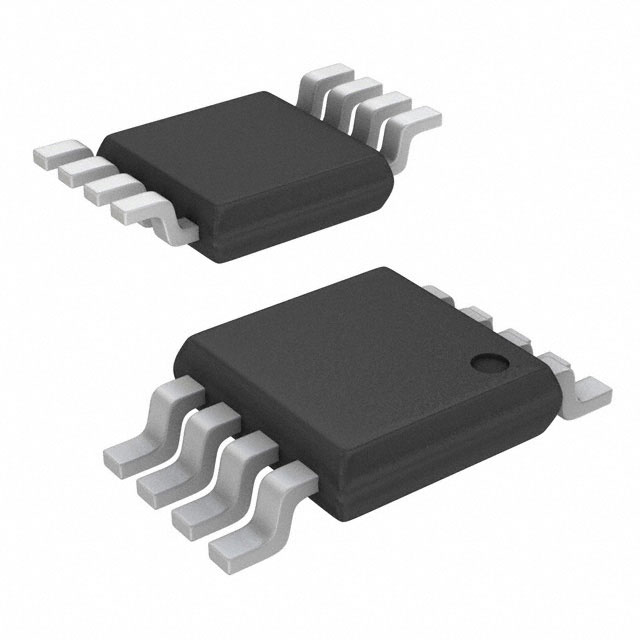

Image shown is a representation only
Manufacturer
Manufacturer No
RT9715HGF
Package
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging
Tape & Reel (TR)
Description
IC PWR SWITCH N-CHAN 1:1 8MSOP
Detailed Description
Power Switch/Driver 1:1 N-Channel 700mA 8-MSOP
DataSheet
Mfr
Richtek USA Inc.
Features
Load Discharge, Status Flag
Interface
On/Off
Packaging
Tape & Reel (TR)
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Obsolete
Switch Type
USB Switch
Rds On (Typ)
90mOhm
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Voltage - Load
2.7V ~ 5.5V
Fault Protection
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Number of Outputs
1
Base Product Number
RT9715
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 100°C (TJ)
Current - Output (Max)
700mA
Supplier Device Package
8-MSOP
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Richtek USA Inc. |
| Features | Load Discharge, Status Flag |
| Interface | On/Off |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | USB Switch |
| Rds On (Typ) | 90mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Voltage - Load | 2.7V ~ 5.5V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Number of Outputs | 1 |
| Base Product Number | RT9715 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Current - Output (Max) | 700mA |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply (Vcc/Vdd) | Not Required |
