Richtek USA Inc. RT6542AGQW

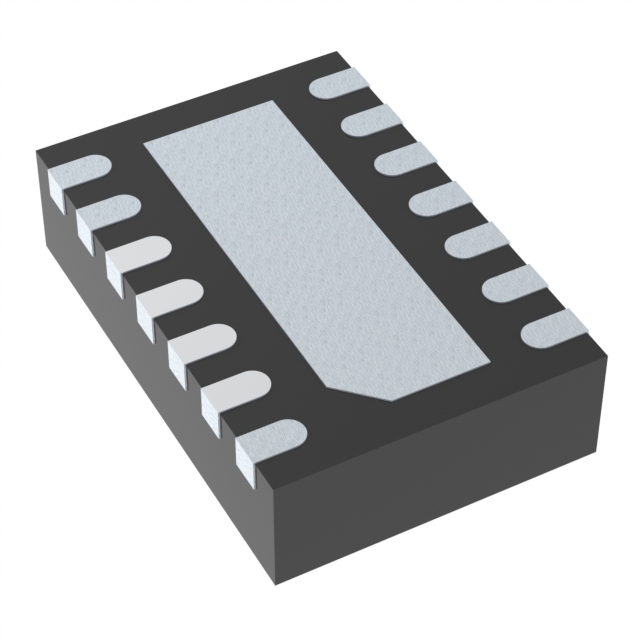

Image shown is a representation only
Manufacturer
Manufacturer No
RT6542AGQW
Package
14-WFDFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC REG CTRLR BUCK PWM WDFN-14
Detailed Description
Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-WDFN (3x2)
DataSheet
Function
Step-Down
Topology
Buck
Packaging
Tape & Reel (TR)
Clock Sync
No
Output Type
Transistor Driver
Part Status
Active
Manufacturer
Richtek USA Inc.
Mounting Type
Surface Mount
Output Phases
1
Package / Case
14-WFDFN Exposed Pad
Control Features
Current Limit, Dead Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start
Number of Outputs
1
Base Product Number
RT6542
Output Configuration
Positive
Frequency - Switching
560kHz
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
Yes
Supplier Device Package
14-WDFN (3x2)
Voltage - Supply (Vcc/Vdd)
3V ~ 26V
| Attribute | Value |
|---|---|
| Function | Step-Down |
| Topology | Buck |
| Packaging | Tape & Reel (TR) |
| Clock Sync | No |
| Output Type | Transistor Driver |
| Part Status | Active |
| Manufacturer | Richtek USA Inc. |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 14-WFDFN Exposed Pad |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Number of Outputs | 1 |
| Base Product Number | RT6542 |
| Output Configuration | Positive |
| Frequency - Switching | 560kHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 14-WDFN (3x2) |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 26V |
