Step1: Product

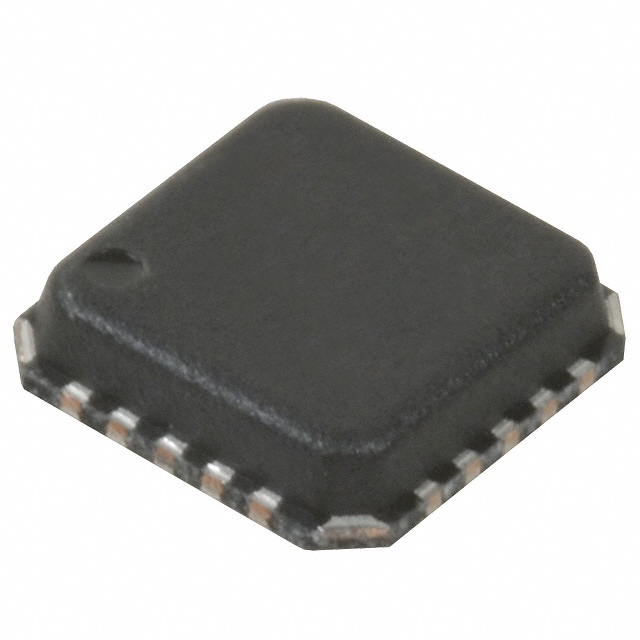

RFMD SZA-3044Z
Image shown is a representation only
Manufacturer
Manufacturer No
SZA-3044Z
Package
20-VFQFN Exposed Pad
Packaging
Cut Tape (CT)
Description
IC AMP 802.16 2.7-3.8GHZ 20QFN
Detailed Description
RF Amplifier IC 802.16/WiMax, WLL 2.7GHz ~ 3.8GHz 20-QFN (4x4)
DataSheet
Gain
22dB ~ 26dB
P1dB
28.5dBm ~ 30dBm
RF Type
802.16/WiMax, WLL
Frequency
2.7GHz ~ 3.8GHz
Packaging
Cut Tape (CT)
Part Status
Discontinued at DigiKey
Manufacturer
RFMD
Noise Figure
5dB
Mounting Type
Surface Mount
Package / Case
20-VFQFN Exposed Pad
Test Frequency
3.6GHz
Current - Supply
170mA ~ 240mA
Voltage - Supply
3V ~ 6V
Supplier Device Package
20-QFN (4x4)
| Attribute | Value |
|---|---|
| Gain | 22dB ~ 26dB |
| P1dB | 28.5dBm ~ 30dBm |
| RF Type | 802.16/WiMax, WLL |
| Frequency | 2.7GHz ~ 3.8GHz |
| Packaging | Cut Tape (CT) |
| Part Status | Discontinued at DigiKey |
| Manufacturer | RFMD |
| Noise Figure | 5dB |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Test Frequency | 3.6GHz |
| Current - Supply | 170mA ~ 240mA |
| Voltage - Supply | 3V ~ 6V |
| Supplier Device Package | 20-QFN (4x4) |
