Step1: Product

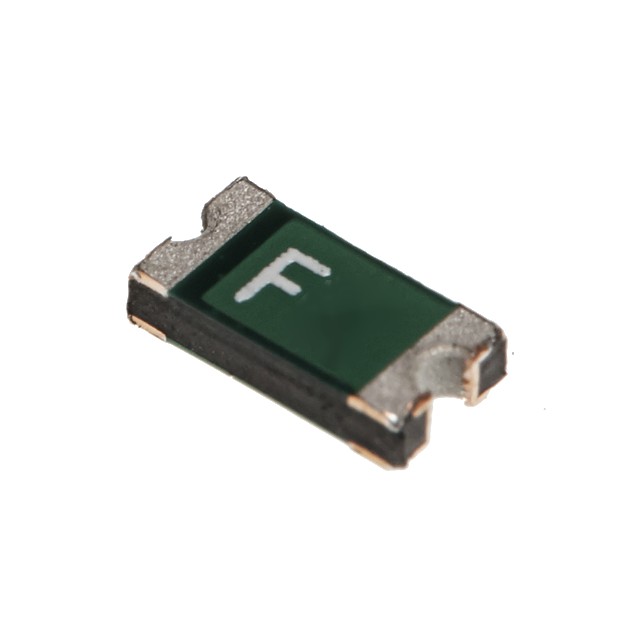

RFE/Fuzetec FSMD075-1206R
Image shown is a representation only
Manufacturer
Manufacturer No
FSMD075-1206R
Package
1206 (3216 Metric), Concave
Packaging
Tape & Reel (TR)
Description
RESETTABLE FUSE - SMD, 1206 SIZE
Detailed Description
PTC Resettable Fuse 8V 750 mA Ih Surface Mount 1206 (3216 Metric), Concave
DataSheet
Series
FSMD1206
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
RFE/Fuzetec
Time to Trip
200 ms
Current - Max
100 A
Mounting Type
Surface Mount
Voltage - Max
8V
Package / Case
1206 (3216 Metric), Concave
Approval Agency
cUL, TUV, UL
Thickness (Max)
0.049" (1.25mm)
Size / Dimension
0.128" L x 0.065" W (3.25mm x 1.65mm)
Current - Trip (It)
1.5 A
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
750 mA
Resistance - Initial (Ri) (Min)
90 mOhms
Resistance - Post Trip (R1) (Max)
290 mOhms
| Attribute | Value |
|---|---|
| Series | FSMD1206 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | RFE/Fuzetec |
| Time to Trip | 200 ms |
| Current - Max | 100 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 8V |
| Package / Case | 1206 (3216 Metric), Concave |
| Approval Agency | cUL, TUV, UL |
| Thickness (Max) | 0.049" (1.25mm) |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Current - Trip (It) | 1.5 A |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750 mA |
| Resistance - Initial (Ri) (Min) | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 290 mOhms |
