Step1: Product

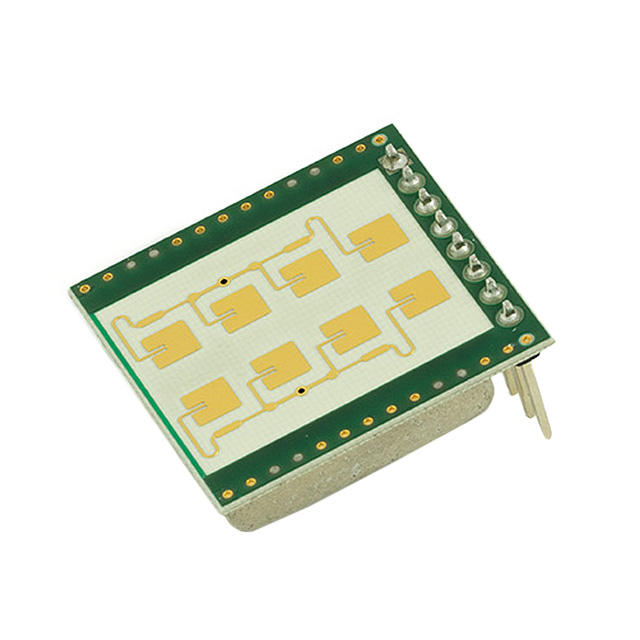

RFbeam Microwave GmbH K-LD2-RFB-00H-02
Image shown is a representation only
Manufacturer
Manufacturer No
K-LD2-RFB-00H-02
Package
8-SIP Module
Packaging
Tray
Description
RF TXRX MOD RADAR CER PATCH TH
Detailed Description
Radar Serial Transceiver Module 24.05GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole
Datasheet
Mfr
RFbeam Microwave GmbH
Series
K-LD
Protocol
Serial
Data Rate
38400bps
Frequency
24.05GHz ~ 24.25GHz
Packaging
Tray
Modulation
CW
Sensitivity
-127dBc
Antenna Type
Integrated, Ceramic Patch
Mounting Type
Through Hole
Package / Case
8-SIP Module
Power - Output
12dBm
Voltage - Supply
3.2V ~ 5.5V
Serial Interfaces
GPO, UART
RF Family/Standard
Radar
Base Product Number
K-LD2
Current - Receiving
55mA
DigiKey Programmable
Not Verified
Operating Temperature
-20°C ~ 85°C
Current - Transmitting
55mA
| Attribute | Value |
|---|---|
| Mfr | RFbeam Microwave GmbH |
| Series | K-LD |
| Protocol | Serial |
| Data Rate | 38400bps |
| Frequency | 24.05GHz ~ 24.25GHz |
| Packaging | Tray |
| Modulation | CW |
| Sensitivity | -127dBc |
| Antenna Type | Integrated, Ceramic Patch |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module |
| Power - Output | 12dBm |
| Voltage - Supply | 3.2V ~ 5.5V |
| Serial Interfaces | GPO, UART |
| RF Family/Standard | Radar |
| Base Product Number | K-LD2 |
| Current - Receiving | 55mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -20°C ~ 85°C |
| Current - Transmitting | 55mA |
