Renesas 2SB1261(1)-AZ

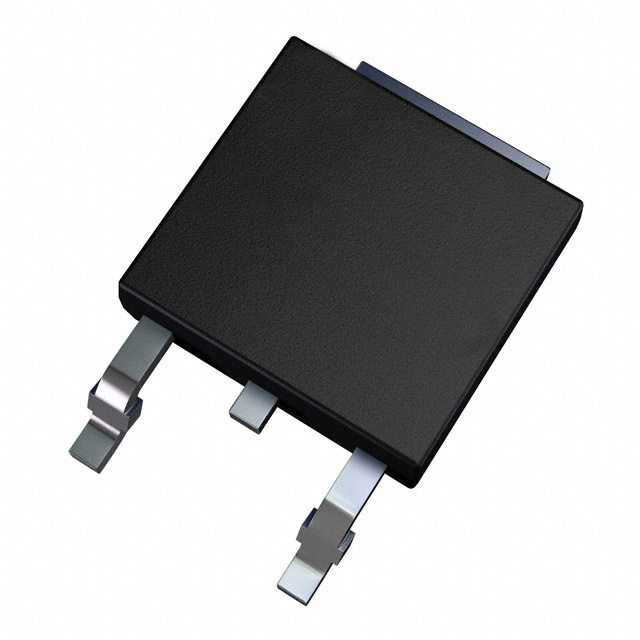

Image shown is a representation only
Manufacturer
Manufacturer No
2SB1261(1)-AZ
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Bulk
Description
TRANS PNP 60V 3A TO252
Detailed Description
Bipolar (BJT) Transistor PNP 60 V 3 A 50MHz 2 W Surface Mount TO-252 (MP-3Z)
DataSheet
Mfr
Renesas
Packaging
Bulk
Part Status
Obsolete
Power - Max
2 W
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Transistor Type
PNP
Operating Temperature
150°C (TJ)
Frequency - Transition
50MHz
Supplier Device Package
TO-252 (MP-3Z)
Vce Saturation (Max) @ Ib, Ic
300mV @ 150mA, 1.5A
Current - Collector (Ic) (Max)
3 A
Current - Collector Cutoff (Max)
10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 600mA, 2V
Voltage - Collector Emitter Breakdown (Max)
60 V
| Attribute | Value |
|---|---|
| Mfr | Renesas |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 2 W |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 50MHz |
| Supplier Device Package | TO-252 (MP-3Z) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 150mA, 1.5A |
| Current - Collector (Ic) (Max) | 3 A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 600mA, 2V |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
