Step1: Product
Renesas Electronics Corporation ZMID4200AI1R

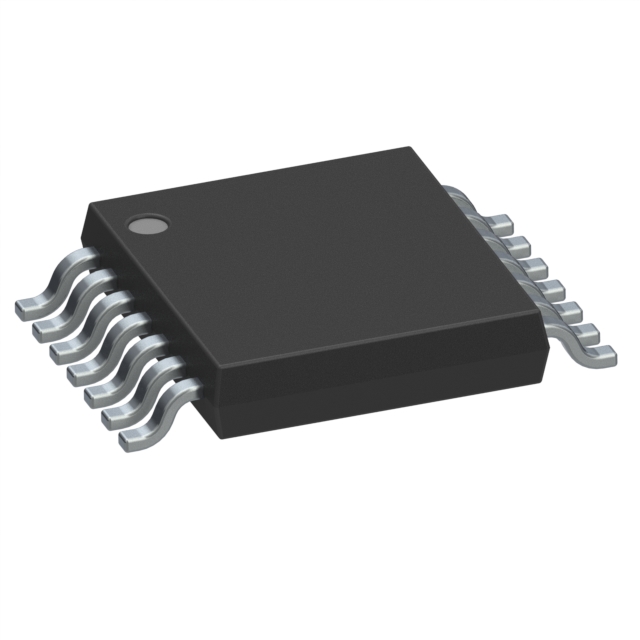

Image shown is a representation only
Manufacturer
Manufacturer No
ZMID4200AI1R
Package
14-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR)
Description
TSSOP / 14 / 4,4MM G1 - TAPE&REE
Detailed Description
Inductive Sensor Angle, Linear, Rotary External Magnet, Not Included Gull Wing
Datasheet
Output
Analog Voltage
Packaging
Tape & Reel (TR)
Technology
Inductive
Manufacturer
Renesas Electronics Corporation
Actuator Type
External Magnet, Not Included
For Measuring
Angle, Linear, Rotary
Mounting Type
Surface Mount
Output Signal
Clockwise Increase
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Voltage - Supply
4.5V ~ 5.5V
Termination Style
Gull Wing
Operating Temperature
-40°C ~ 150°C
Supplier Device Package
14-TSSOP
Rotation Angle - Electrical, Mechanical
0° ~ 360°
| Attribute | Value |
|---|---|
| Output | Analog Voltage |
| Packaging | Tape & Reel (TR) |
| Technology | Inductive |
| Manufacturer | Renesas Electronics Corporation |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Angle, Linear, Rotary |
| Mounting Type | Surface Mount |
| Output Signal | Clockwise Increase |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | 14-TSSOP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
