Renesas Electronics Corporation RAA2124214GNP#HA0

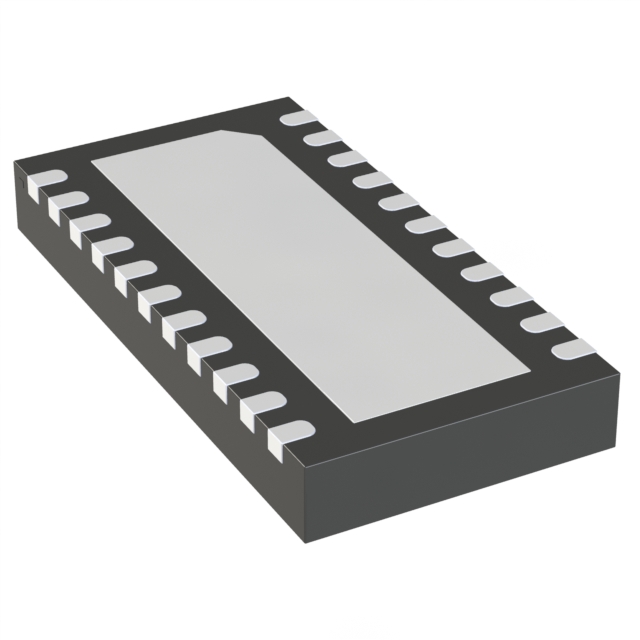

Image shown is a representation only
Manufacturer
Manufacturer No
RAA2124214GNP#HA0
Package
22-WFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LOW DROP OUT LINEAR SYNCH BUCK
Detailed Description
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 300kHz ~ 2MHz 22-TDFN (3x6)
DataSheet
Topology
Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
w/Sequencer
Yes
Manufacturer
Renesas Electronics Corporation
w/LED Driver
No
w/Supervisor
No
Mounting Type
Surface Mount
Package / Case
22-WFDFN Exposed Pad
Voltage - Supply
1.8V ~ 6V, 3V ~ 40V
Number of Outputs
2
Base Product Number
RAA2124214
Frequency - Switching
300kHz ~ 2MHz
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
22-TDFN (3x6)
Voltage/Current - Output 1
Programmable, Programmable, 0.5V ~ 5.5V, 1.1A
Voltage/Current - Output 2
Programmable, Programmable, 0.8V ~ 5.5V, 500mA
| Attribute | Value |
|---|---|
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| w/Sequencer | Yes |
| Manufacturer | Renesas Electronics Corporation |
| w/LED Driver | No |
| w/Supervisor | No |
| Mounting Type | Surface Mount |
| Package / Case | 22-WFDFN Exposed Pad |
| Voltage - Supply | 1.8V ~ 6V, 3V ~ 40V |
| Number of Outputs | 2 |
| Base Product Number | RAA2124214 |
| Frequency - Switching | 300kHz ~ 2MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 22-TDFN (3x6) |
| Voltage/Current - Output 1 | Programmable, Programmable, 0.5V ~ 5.5V, 1.1A |
| Voltage/Current - Output 2 | Programmable, Programmable, 0.8V ~ 5.5V, 500mA |
