Renesas Electronics Corporation ISL78444AVEZ-T7A

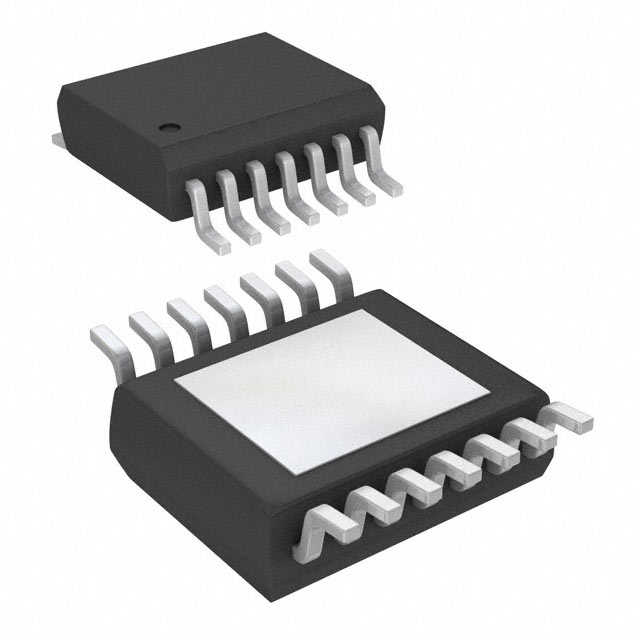

Image shown is a representation only
Manufacturer
Manufacturer No
ISL78444AVEZ-T7A
Quantity
39
Availability
In Stock
Package
14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR HALF-BRIDG 14HTSSOP
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 14-HTSSOP
DataSheet
Grade
Automotive
Gate Type
MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Channel Type
Synchronous
Manufacturer
Renesas Electronics Corporation
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Supply
8V ~ 18V
Number of Drivers
2
Base Product Number
ISL78444
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 140°C (TJ)
Rise / Fall Time (Typ)
10ns, 10ns
Supplier Device Package
14-HTSSOP
Logic Voltage - VIL, VIH
1V, 2.1V
High Side Voltage - Max (Bootstrap)
100 V
Current - Peak Output (Source, Sink)
3A, 4A
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Synchronous |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Supply | 8V ~ 18V |
| Number of Drivers | 2 |
| Base Product Number | ISL78444 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Supplier Device Package | 14-HTSSOP |
| Logic Voltage - VIL, VIH | 1V, 2.1V |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
