Renesas Electronics Corporation HIP2210FRTZ-T

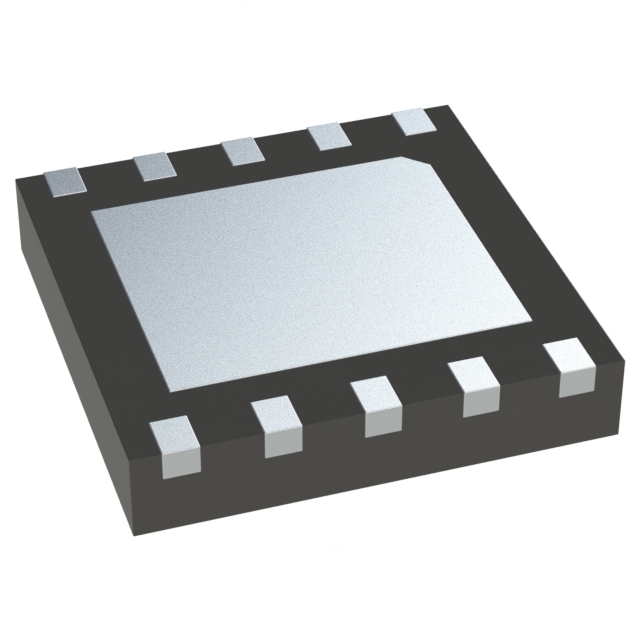

Image shown is a representation only
Manufacturer
Manufacturer No
HIP2210FRTZ-T
Package
10-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR HALF-BRIDGE 10TDFN
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 10-TDFN (4x4)
DataSheet
Gate Type
MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Channel Type
Synchronous
Manufacturer
Renesas Electronics Corporation
Mounting Type
Surface Mount
Package / Case
10-WDFN Exposed Pad
Voltage - Supply
6V ~ 18V
Number of Drivers
2
Base Product Number
HIP2210
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
435ns, 365ns
Supplier Device Package
10-TDFN (4x4)
Logic Voltage - VIL, VIH
1.47V, 1.84V
High Side Voltage - Max (Bootstrap)
115 V
Current - Peak Output (Source, Sink)
3A, 4A
| Attribute | Value |
|---|---|
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Synchronous |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Voltage - Supply | 6V ~ 18V |
| Number of Drivers | 2 |
| Base Product Number | HIP2210 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 435ns, 365ns |
| Supplier Device Package | 10-TDFN (4x4) |
| Logic Voltage - VIL, VIH | 1.47V, 1.84V |
| High Side Voltage - Max (Bootstrap) | 115 V |
| Current - Peak Output (Source, Sink) | 3A, 4A |
