Step1: Product
Renesas Electronics Corporation CR05AS-8-BT14#F01

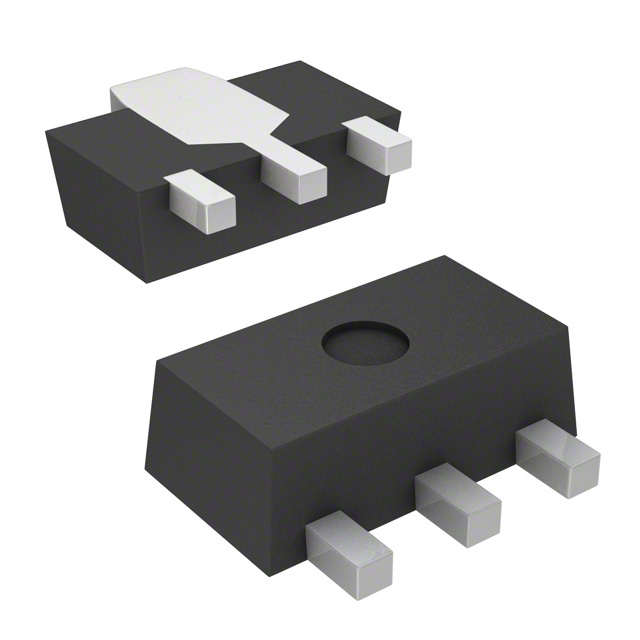

Image shown is a representation only
Manufacturer
Manufacturer No
CR05AS-8-BT14#F01
Quantity
15
Availability
In Stock
Package
TO-243AA
Packaging
Tape & Reel (TR)
Description
SCR 400V 790MA UPAK
Detailed Description
SCR 400 V 790 mA Sensitive Gate Surface Mount UPAK
DataSheet
SCR Type
Sensitive Gate
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Manufacturer
Renesas Electronics Corporation
Mounting Type
Surface Mount
Package / Case
TO-243AA
Base Product Number
CR05AS-8
Voltage - Off State
400 V
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
UPAK
Current - Hold (Ih) (Max)
3 mA
Current - Off State (Max)
100 µA
Voltage - On State (Vtm) (Max)
1.9 V
Current - Gate Trigger (Igt) (Max)
100 µA
Current - On State (It (AV)) (Max)
500 mA
Voltage - Gate Trigger (Vgt) (Max)
800 mV
Current - On State (It (RMS)) (Max)
790 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)
10A @ 60Hz
| Attribute | Value |
|---|---|
| SCR Type | Sensitive Gate |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Base Product Number | CR05AS-8 |
| Voltage - Off State | 400 V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | UPAK |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Off State (Max) | 100 µA |
| Voltage - On State (Vtm) (Max) | 1.9 V |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - On State (It (AV)) (Max) | 500 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 790 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A @ 60Hz |
