Step1: Product

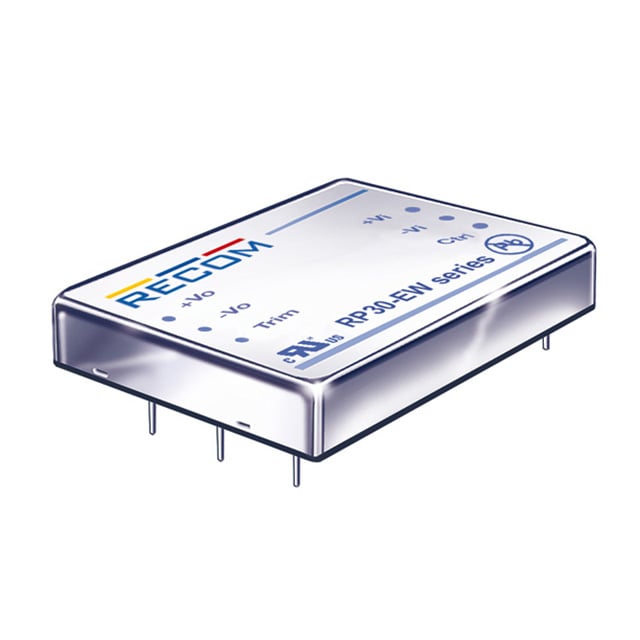

Recom Power RP30-2412DEW-HC
Image shown is a representation only
Manufacturer
Manufacturer No
RP30-2412DEW-HC
Package
8-DIP Module, 7 Leads
Packaging
Tube
Description
DC DC CONVERTER +/-12V 30W
Detailed Description
Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 10V - 40V Input
DataSheet
Mfr
Recom Power
Type
Isolated Module
Series
POWERLINE RP30-EW (30W)
Features
Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Packaging
Tube
Efficiency
84%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
30 W
Package / Case
8-DIP Module, 7 Leads
Control Features
Enable, Active High
Size / Dimension
2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
Number of Outputs
2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Base Product Number
RP30-2412
Voltage - Isolation
1.6 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
40V
Voltage - Input (Min)
10V
Current - Output (Max)
1.25A, 1.25A
| Attribute | Value |
|---|---|
| Mfr | Recom Power |
| Type | Isolated Module |
| Series | POWERLINE RP30-EW (30W) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Packaging | Tube |
| Efficiency | 84% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 30 W |
| Package / Case | 8-DIP Module, 7 Leads |
| Control Features | Enable, Active High |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Base Product Number | RP30-2412 |
| Voltage - Isolation | 1.6 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 40V |
| Voltage - Input (Min) | 10V |
| Current - Output (Max) | 1.25A, 1.25A |
