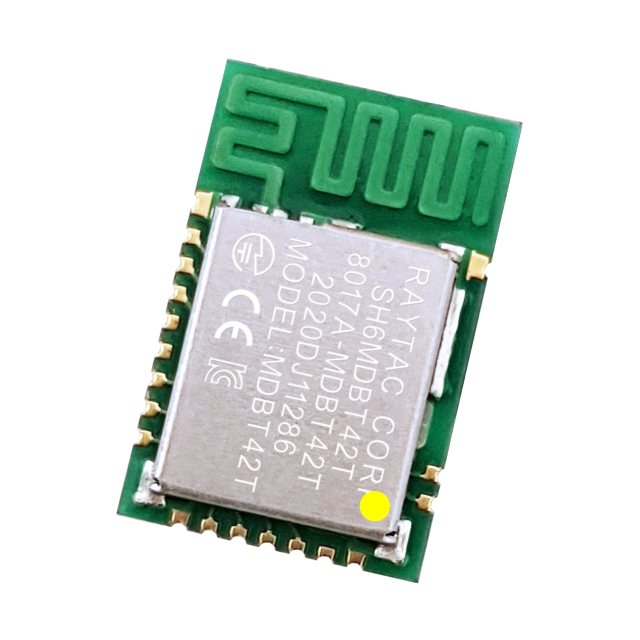

Raytac MDBT42T-PAT
Image shown is a representation only
Manufacturer
Manufacturer No
MDBT42T-PAT
Package
19-SMD Module
Packaging
Retail Package
Description
RF TXRX MOD BT PCB TH SMD
Detailed Description
Bluetooth Bluetooth v5.4 Transceiver Module 2.36GHz ~ 2.5GHz PCB Trace Surface Mount
DataSheet
Mfr
Raytac
Protocol
Bluetooth v5.4
Data Rate
2Mbps
Frequency
2.36GHz ~ 2.5GHz
Packaging
Retail Package
Memory Size
192kB Flash, 24kB RAM
Part Status
Active
Sensitivity
-97dBm
Antenna Type
PCB Trace
Mounting Type
Surface Mount
Package / Case
19-SMD Module
Power - Output
4dBm
Voltage - Supply
1.7V ~ 3.6V
Serial Interfaces
GPIO, UART
RF Family/Standard
Bluetooth
Utilized IC / Part
nRF52805
Current - Receiving
3.5mA ~ 11.2mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
2.1mA ~ 15.4mA
| Attribute | Value |
|---|---|
| Mfr | Raytac |
| Protocol | Bluetooth v5.4 |
| Data Rate | 2Mbps |
| Frequency | 2.36GHz ~ 2.5GHz |
| Packaging | Retail Package |
| Memory Size | 192kB Flash, 24kB RAM |
| Part Status | Active |
| Sensitivity | -97dBm |
| Antenna Type | PCB Trace |
| Mounting Type | Surface Mount |
| Package / Case | 19-SMD Module |
| Power - Output | 4dBm |
| Voltage - Supply | 1.7V ~ 3.6V |
| Serial Interfaces | GPIO, UART |
| RF Family/Standard | Bluetooth |
| Utilized IC / Part | nRF52805 |
| Current - Receiving | 3.5mA ~ 11.2mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 2.1mA ~ 15.4mA |
