Step1: Product

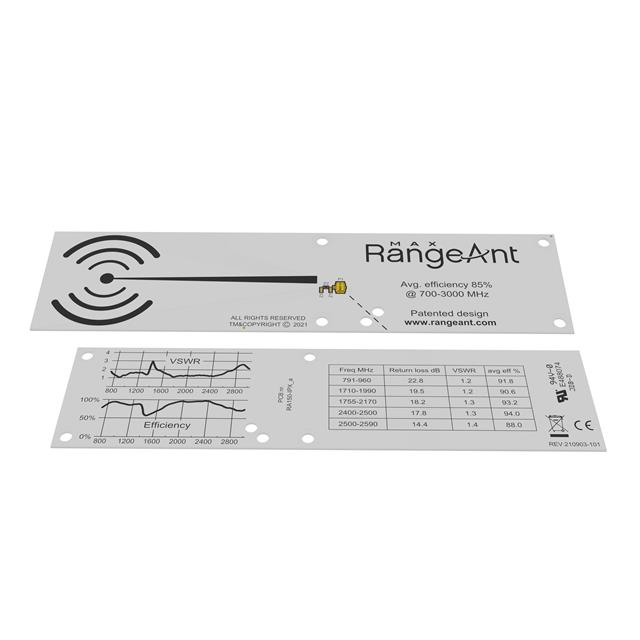

RangeAnt RA150-IPX
Image shown is a representation only
Manufacturer
Manufacturer No
RA150-IPX
Packaging
Bag
Description
WIDEBAND HIGH EFFICIENCY ANTENNA
Detailed Description
RF ANTENNA 2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee PCB Trace IPX Surface Mount
DataSheet
Gain
3dBi
VSWR
1.3, 1.4, 1.5
Series
MAX Wideband
Packaging
Bag
Part Status
Active
Return Loss
9.7dB, 10.6dB, 11.6dB, 21.2dB, 25.6dB, 26.1dB
Termination
IPX
Antenna Type
PCB Trace
Applications
2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee
Height (Max)
0.031" (0.80mm)
Manufacturer
RangeAnt
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz
Number of Bands
6
RF Family/Standard
802.15.4, Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band)
875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi |
| VSWR | 1.3, 1.4, 1.5 |
| Series | MAX Wideband |
| Packaging | Bag |
| Part Status | Active |
| Return Loss | 9.7dB, 10.6dB, 11.6dB, 21.2dB, 25.6dB, 26.1dB |
| Termination | IPX |
| Antenna Type | PCB Trace |
| Applications | 2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee |
| Height (Max) | 0.031" (0.80mm) |
| Manufacturer | RangeAnt |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz |
| Number of Bands | 6 |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, Navigation, WiFi |
| Frequency (Center/Band) | 875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz |
