Step1: Product
Raltron Electronics RTX-104CHZ1-S-32.000-TR

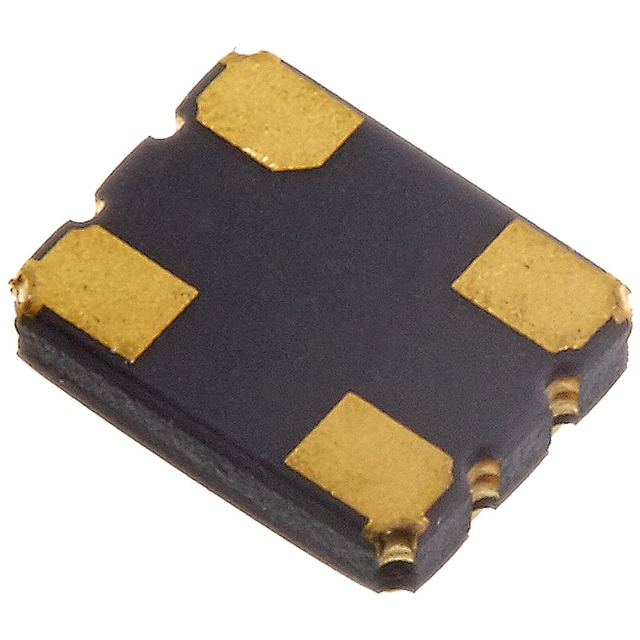

Image shown is a representation only
Manufacturer
Manufacturer No
RTX-104CHZ1-S-32.000-TR
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
XTAL OSC TCXO 32MHZ 1.8V CLP SNW
Detailed Description
30 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Datasheet
Mfr
Raltron Electronics
Type
TCXO
Output
Clipped Sine Wave
Series
RTX-104
Frequency
30 MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Mounting Type
Surface Mount
Base Resonator
Crystal
Package / Case
4-SMD, No Lead
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Voltage - Supply
1.8V
Frequency Stability
±1.5ppm
Height - Seated (Max)
0.047" (1.20mm)
Operating Temperature
-20°C ~ 70°C
Current - Supply (Max)
2.5mA
Absolute Pull Range (APR)
±1ppm
| Attribute | Value |
|---|---|
| Mfr | Raltron Electronics |
| Type | TCXO |
| Output | Clipped Sine Wave |
| Series | RTX-104 |
| Frequency | 30 MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Mounting Type | Surface Mount |
| Base Resonator | Crystal |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Voltage - Supply | 1.8V |
| Frequency Stability | ±1.5ppm |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Operating Temperature | -20°C ~ 70°C |
| Current - Supply (Max) | 2.5mA |
| Absolute Pull Range (APR) | ±1ppm |
