Step1: Product

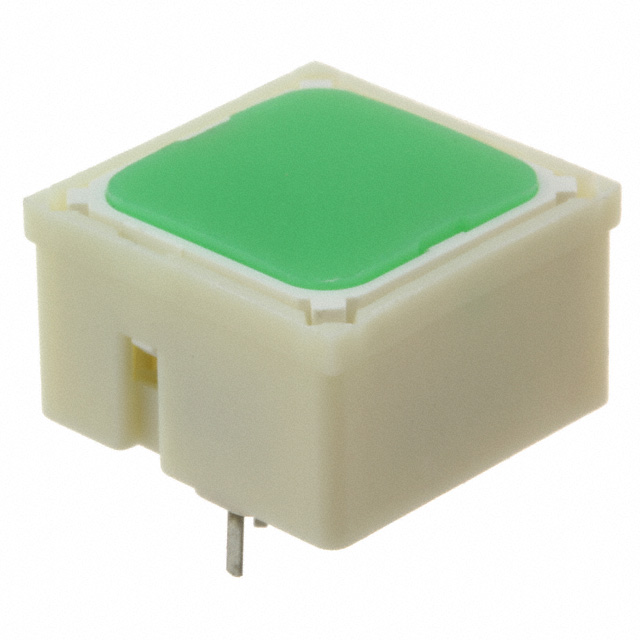

RAFI 3.14.200.022/0000
Image shown is a representation only
Manufacturer
Manufacturer No
3.14.200.022/0000
Quantity
2
Availability
In Stock
Packaging
Tube
Description
SWITCH TACTILE SPST-NO 0.25A 35V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
Mfr
RAFI
Series
RF15
Circuit
SPST-NO
Outline
15.00mm x 15.00mm
Packaging
Tube
Illumination
Illuminated
Actuator Type
Square Button
Mounting Type
Through Hole
Switch Travel
0.50mm
Mechanical Life
1,000,000 Cycles
Operating Force
296gf
Switch Function
Off-Mom
Termination Style
PC Pin
Base Product Number
3.14.200
Actuator Orientation
Top Actuated
Operating Temperature
-25°C ~ 70°C
Contact Rating @ Voltage
0.25A @ 35VAC/DC
Illumination Type, Color
LED, Green
Actuator Height off PCB, Vertical
9.70mm
| Attribute | Value |
|---|---|
| Mfr | RAFI |
| Series | RF15 |
| Circuit | SPST-NO |
| Outline | 15.00mm x 15.00mm |
| Packaging | Tube |
| Illumination | Illuminated |
| Actuator Type | Square Button |
| Mounting Type | Through Hole |
| Switch Travel | 0.50mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 296gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Base Product Number | 3.14.200 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating @ Voltage | 0.25A @ 35VAC/DC |
| Illumination Type, Color | LED, Green |
| Actuator Height off PCB, Vertical | 9.70mm |
