Step1: Product

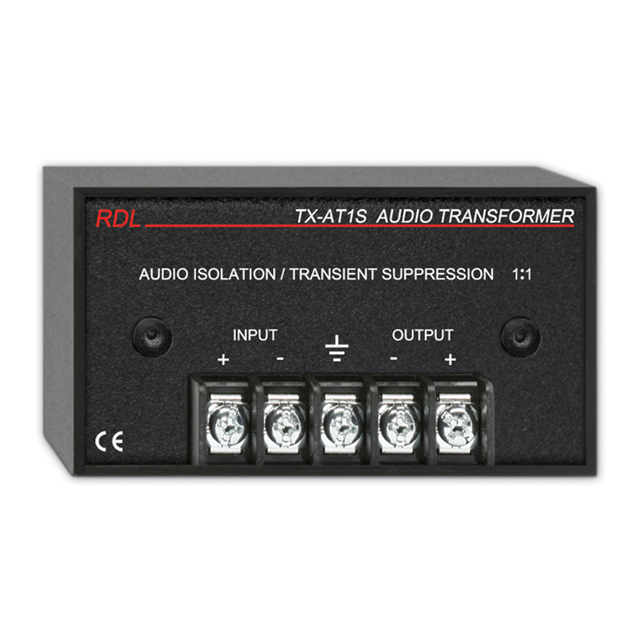

Radio Design Labs TX-AT1S
Image shown is a representation only
Manufacturer
Manufacturer No
TX-AT1S
Packaging
Retail Package
Description
AUDIO XFMR 600 / 600 CHAS MNT
Detailed Description
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer 20Hz ~ 20kHz Chassis Mount
Series
TX™
Packaging
Retail Package
Part Status
Active
Manufacturer
Radio Design Labs
Mounting Type
Chassis Mount
Insertion Loss
2dB Typ
Approval Agency
CE
Frequency Range
20Hz ~ 20kHz
Size / Dimension
3.169" L x 1.752" W (80.50mm x 44.50mm)
Transformer Type
Impedance Matching
Termination Style
Screw Terminal
Frequency Response
±0.1dB
Height - Seated (Max)
2.059" (52.30mm)
Operating Temperature
0°C ~ 55°C
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Series | TX™ |
| Packaging | Retail Package |
| Part Status | Active |
| Manufacturer | Radio Design Labs |
| Mounting Type | Chassis Mount |
| Insertion Loss | 2dB Typ |
| Approval Agency | CE |
| Frequency Range | 20Hz ~ 20kHz |
| Size / Dimension | 3.169" L x 1.752" W (80.50mm x 44.50mm) |
| Transformer Type | Impedance Matching |
| Termination Style | Screw Terminal |
| Frequency Response | ±0.1dB |
| Height - Seated (Max) | 2.059" (52.30mm) |
| Operating Temperature | 0°C ~ 55°C |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| Turns Ratio - Primary:Secondary | 1:1 |
