Step1: Product
Radiall USA, Inc. R694252557

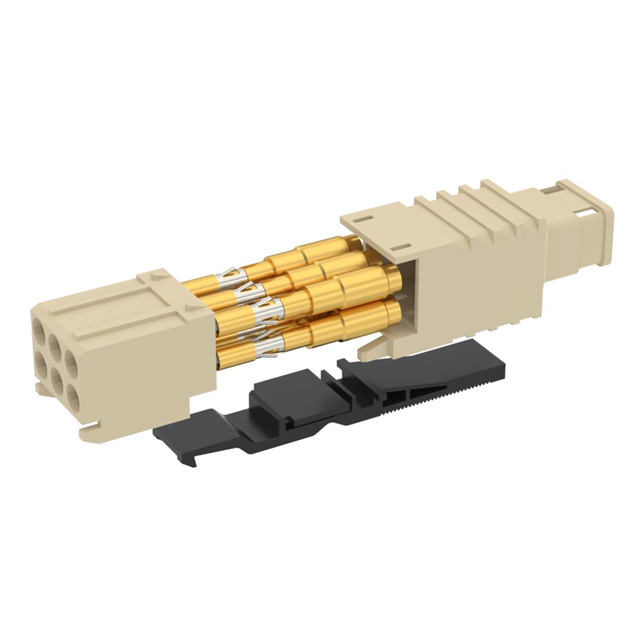

Image shown is a representation only
Manufacturer
Manufacturer No
R694252557
Packaging
Bulk
Description
COAXIPACK 2 / STRAIGHT FEMALE MO
Detailed Description
MCC2 Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
DataSheet
Mfr
Radiall USA, Inc.
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Female Socket
Fastening Type
Push-Pull
Insertion Loss
0.2dB
Voltage Rating
500 V
Connector Style
MCC2
Frequency - Max
6 GHz
Number of Ports
6
Shield Termination
Crimp
Base Product Number
R69425
Contact Termination
Crimp
Dielectric Material
Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE)
Operating Temperature
-25°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Female Socket |
| Fastening Type | Push-Pull |
| Insertion Loss | 0.2dB |
| Voltage Rating | 500 V |
| Connector Style | MCC2 |
| Frequency - Max | 6 GHz |
| Number of Ports | 6 |
| Shield Termination | Crimp |
| Base Product Number | R69425 |
| Contact Termination | Crimp |
| Dielectric Material | Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -25°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
