Step1: Product
Radiall USA, Inc. R223434800

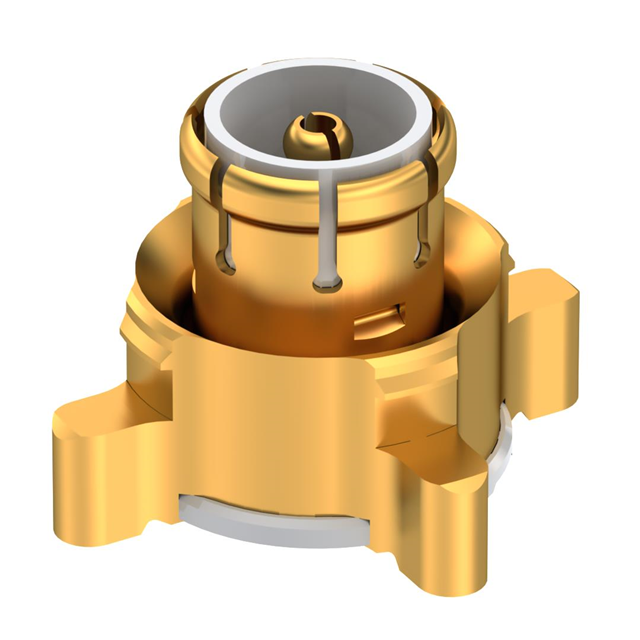

Image shown is a representation only
Manufacturer
Manufacturer No
R223434800
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MMBX / SMT PLUG RECEPTACLE - REE
Detailed Description
MMBX Connector Plug, Male Pin 50 Ohms Surface Mount Solder
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Body Finish
Gold
Part Status
Active
Body Material
Beryllium Copper, Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Plug, Male Pin
Fastening Type
Snap-On
Voltage Rating
330 V
Connector Style
MMBX
Frequency - Max
12.4 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R22343
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper, Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Beryllium Copper, Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Plug, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 330 V |
| Connector Style | MMBX |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R22343 |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper, Brass |
