Step1: Product

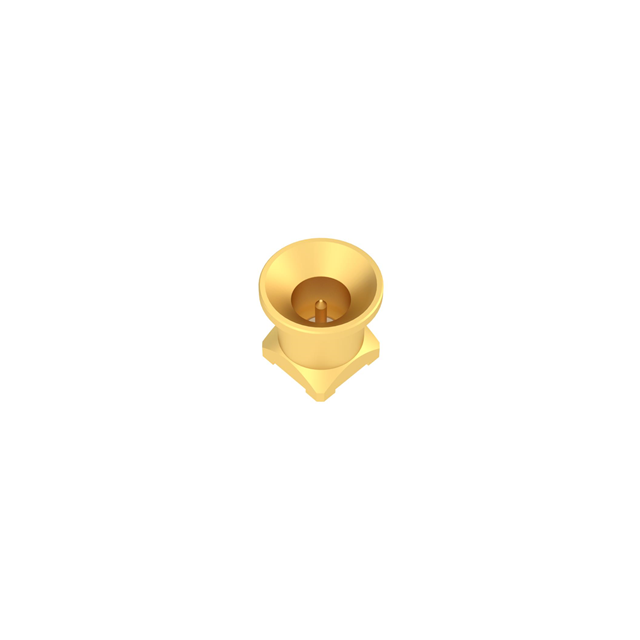

Radiall USA, Inc. R222M00740
Image shown is a representation only
Manufacturer
Manufacturer No
R222M00740
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SMP-MAX / STRAIGHT MALE RECEPTAC
Detailed Description
SMP Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
Datasheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Gold
Body Material
Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMP
Frequency - Max
10 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R222M
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP); Polyetheretherketone (PEEK)
Operating Temperature
-55°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Gold |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMP |
| Frequency - Max | 10 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R222M |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP); Polyetheretherketone (PEEK) |
| Operating Temperature | -55°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
