Step1: Product
Radiall USA, Inc. R222252301

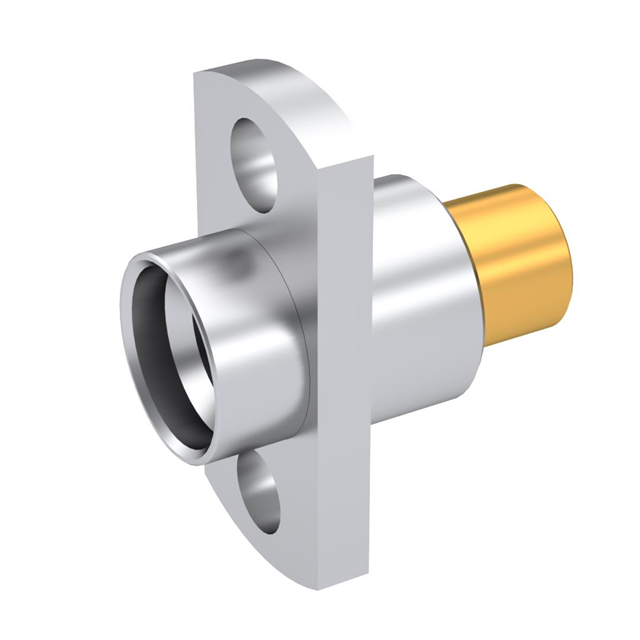

Image shown is a representation only
Manufacturer
Manufacturer No
R222252301
Packaging
Bulk
Description
SMP / 2 HOLE FLANGE MALE JACK LI
Detailed Description
SMP Connector Jack, Male Pin 50 Ohms Panel Mount Solder
DataSheet
Mfr
Radiall USA, Inc.
Features
Limited Detent
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
RG-405 (.085" Semi Rigid)
Part Status
Active
Body Material
Brass, Stainless Steel
Housing Color
Gold, Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMP
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
R22225
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Features | Limited Detent |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Part Status | Active |
| Body Material | Brass, Stainless Steel |
| Housing Color | Gold, Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMP |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | R22225 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
