Step1: Product
Radiall USA, Inc. R201L80000

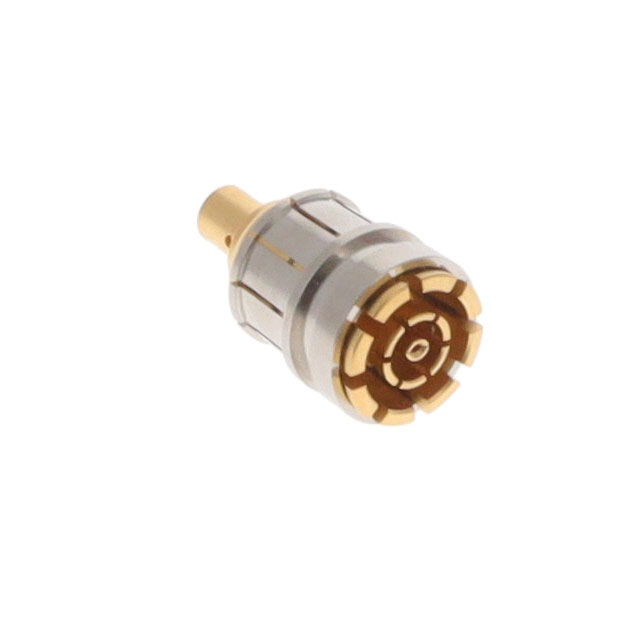

Image shown is a representation only
Manufacturer
Manufacturer No
R201L80000
Packaging
Bulk
Description
SMPM-LOCK / STRAIGHT PLUG SOLDER
Detailed Description
SMPM Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
0.047" Semi Rigid
Part Status
Active
Body Material
Beryllium Copper
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Socket
Fastening Type
Snap-On
Voltage Rating
125 V
Connector Style
SMPM
Frequency - Max
65 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R201L
Contact Termination
Solder
Dielectric Material
Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | 0.047" Semi Rigid |
| Part Status | Active |
| Body Material | Beryllium Copper |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Socket |
| Fastening Type | Snap-On |
| Voltage Rating | 125 V |
| Connector Style | SMPM |
| Frequency - Max | 65 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R201L |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
