Step1: Product

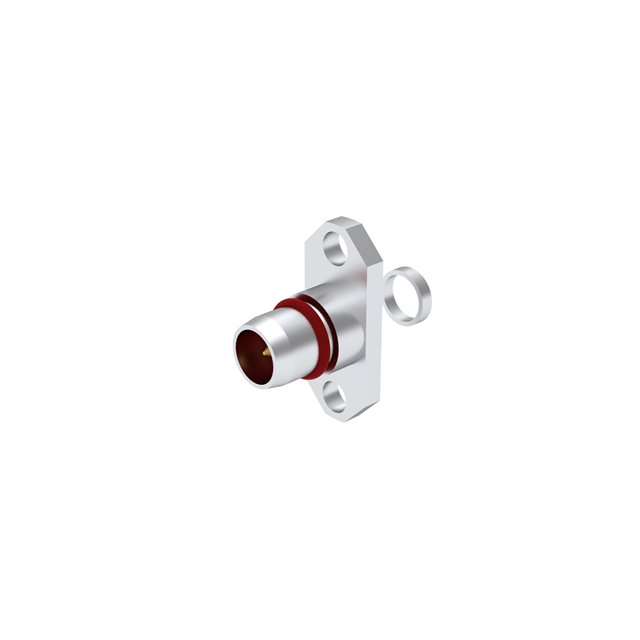

Radiall USA, Inc. R128481001
Image shown is a representation only
Manufacturer
Manufacturer No
R128481001
Packaging
Bulk
Description
BMA / 2 HOLE FLANGE PLUG RECEPTA
Detailed Description
BMA Connector Receptacle, Male Pin 50 Ohms Panel Mount Compression
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Bulk
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
1000
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Voltage Rating
350 V
Connector Style
BMA
Frequency - Max
22 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
IP54 - Dust Protected
Shield Termination
Screw
Base Product Number
R12848
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 1000 |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 350 V |
| Connector Style | BMA |
| Frequency - Max | 22 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | IP54 - Dust Protected |
| Shield Termination | Screw |
| Base Product Number | R12848 |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
