Step1: Product
Radiall USA, Inc. R114082000W

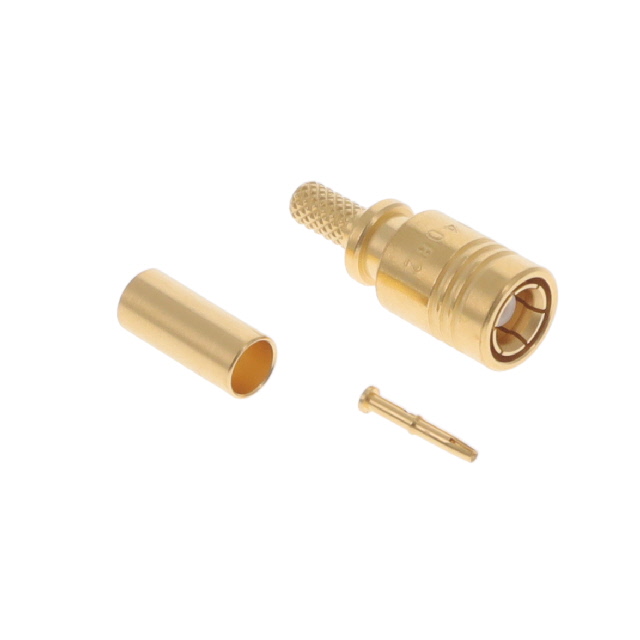

Image shown is a representation only
Manufacturer
Manufacturer No
R114082000W
Packaging
Box
Description
SMB / STRAIGHT PLUG CRIMP TYPE C
Detailed Description
SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Cable Group
RG-174, 179, 187, 188, 316
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Socket
Fastening Type
Snap-On
Voltage Rating
335 V
Connector Style
SMB
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Crimp
Base Product Number
R11408
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Cable Group | RG-174, 179, 187, 188, 316 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Socket |
| Fastening Type | Snap-On |
| Voltage Rating | 335 V |
| Connector Style | SMB |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Base Product Number | R11408 |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
