Step1: Product
Radiall USA, Inc. R112426000

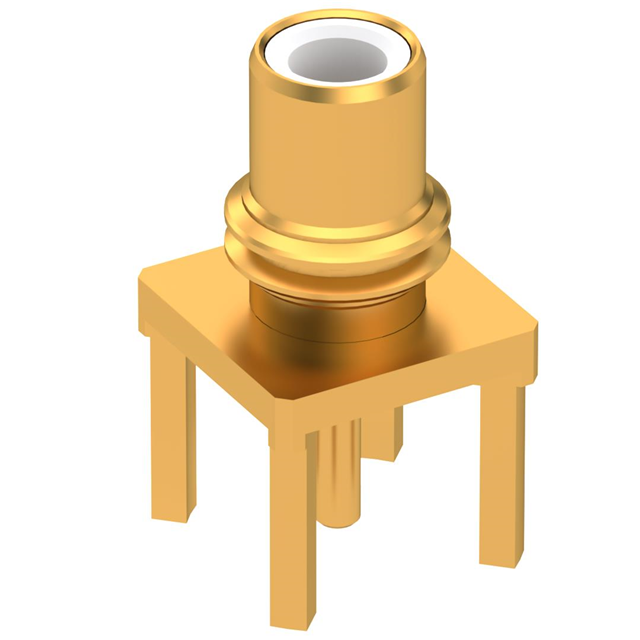

Image shown is a representation only
Manufacturer
Manufacturer No
R112426000
Packaging
Box
Description
SMC / STRAIGHT JACK RECEPTACLE F
Detailed Description
SMC Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Through Hole
Connector Type
Receptacle, Male Pin
Fastening Type
Threaded
Insertion Loss
0.25dB
Connector Style
SMC
Frequency - Max
10 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
R11242
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.25dB |
| Connector Style | SMC |
| Frequency - Max | 10 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | R11242 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
