Step1: Product

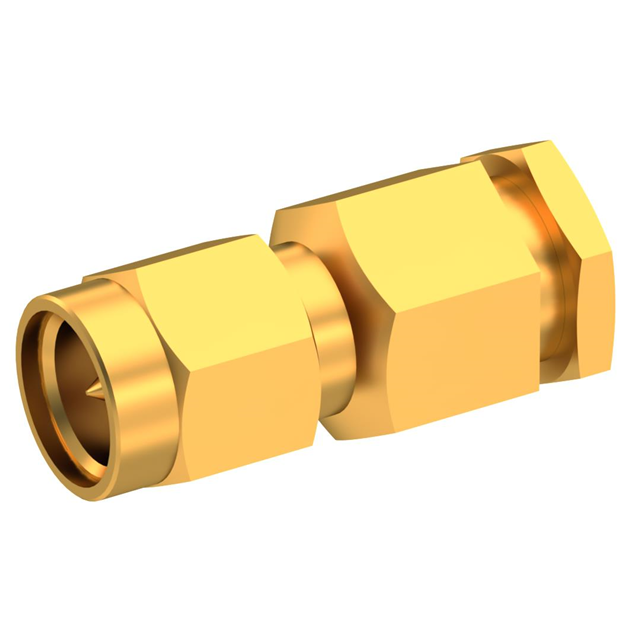

Radiall USA, Inc. 9201-1553-019
Image shown is a representation only
Manufacturer
Manufacturer No
9201-1553-019
Packaging
Bulk
Description
SMA / STRAIGHT PLUG MALE CLAMP T
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Compression
DataSheet
Mfr
Radiall USA, Inc.
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
RG-316 Double Braid
Part Status
Active
Body Material
Stainless Steel
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Voltage Rating
250 V
Connector Style
SMA
Frequency - Max
12.4 GHz
Number of Ports
1
Shield Termination
Clamp
Base Product Number
9201-1553
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | RG-316 Double Braid |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Voltage Rating | 250 V |
| Connector Style | SMA |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Shield Termination | Clamp |
| Base Product Number | 9201-1553 |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
