Step1: Product

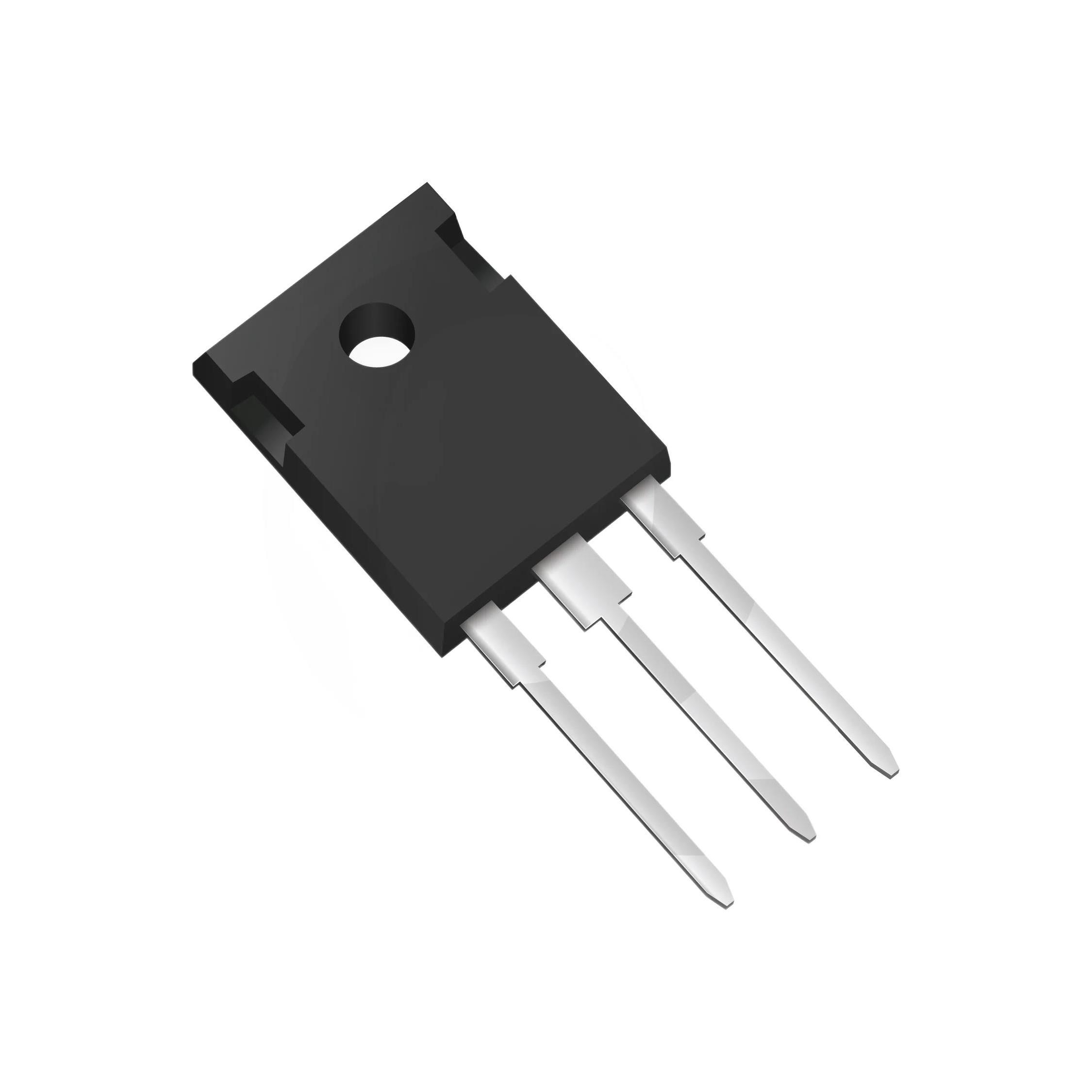

Quest Semi QS1200SCM36
Image shown is a representation only
Manufacturer
Manufacturer No
QS1200SCM36
Package
TO-247-3
Packaging
Tube
Description
1200V 36AMP SiC Mosfet
Detailed Description
N-Channel 1200 V 36A 198W Through Hole PG-TO247-3
DataSheet
Mfr
Quest Semi
Grade
Automotive
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+25V, -10V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-3
Vgs(th) (Max) @ Id
3.8V @ 100µA
Operating Temperature
-55°C ~ 175°C
Rds On (Max) @ Id, Vgs
100mOhm @ 20A, 20V
Power Dissipation (Max)
198W
Supplier Device Package
PG-TO247-3
Gate Charge (Qg) (Max) @ Vgs
60 nC @ 600 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
1001 pF @ 800 V
Drive Voltage (Max Rds On, Min Rds On)
2.8V
Current - Continuous Drain (Id) @ 25°C
36A
| Attribute | Value |
|---|---|
| Mfr | Quest Semi |
| Grade | Automotive |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +25V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Vgs(th) (Max) @ Id | 3.8V @ 100µA |
| Operating Temperature | -55°C ~ 175°C |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 20A, 20V |
| Power Dissipation (Max) | 198W |
| Supplier Device Package | PG-TO247-3 |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 600 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1001 pF @ 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.8V |
| Current - Continuous Drain (Id) @ 25°C | 36A |
