Step1: Product

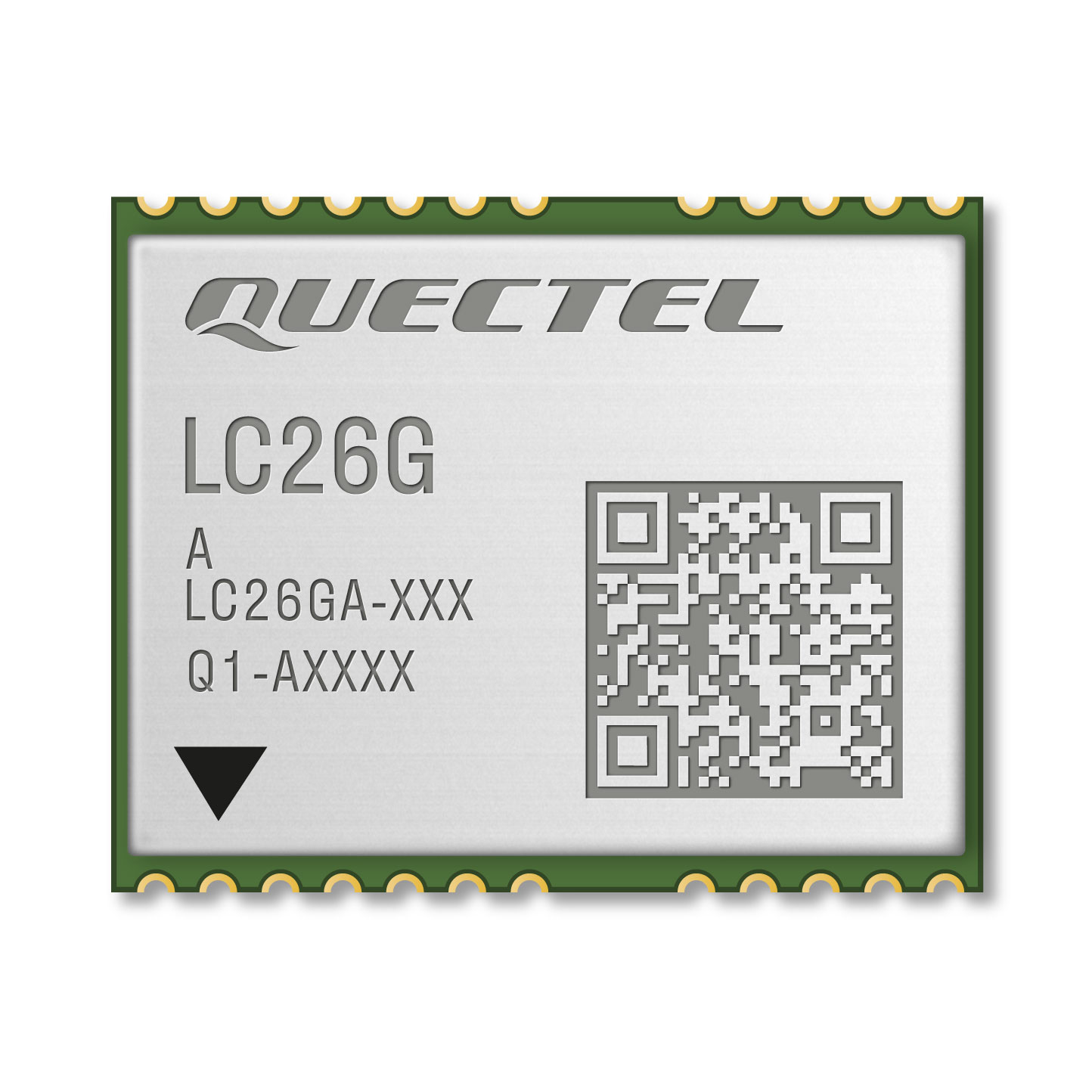

Quectel LC26GABMD
Image shown is a representation only
Manufacturer
Manufacturer No
LC26GABMD
Package
24-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF RECEIVER GNSS 24-SMD
Detailed Description
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS 1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz -166dBm 921.6Mbps 24-LCC (16x12.2)
DataSheet
Frequency
1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
-166dBm
Applications
GNSS Receiver
Manufacturer
Quectel
Mounting Type
Surface Mount
Data Interface
I2C, UART
Package / Case
24-SMD Module
Data Rate (Max)
921.6Mbps
Voltage - Supply
2.55V ~ 3.6V
Base Product Number
LC26G
Operating Temperature
-40°C ~ 85°C
Modulation or Protocol
BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
Supplier Device Package
24-LCC (16x12.2)
| Attribute | Value |
|---|---|
| Frequency | 1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | -166dBm |
| Applications | GNSS Receiver |
| Manufacturer | Quectel |
| Mounting Type | Surface Mount |
| Data Interface | I2C, UART |
| Package / Case | 24-SMD Module |
| Data Rate (Max) | 921.6Mbps |
| Voltage - Supply | 2.55V ~ 3.6V |
| Base Product Number | LC26G |
| Operating Temperature | -40°C ~ 85°C |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS |
| Supplier Device Package | 24-LCC (16x12.2) |
