Step1: Product
Pulse Electronics TPX2012LL95R1525A

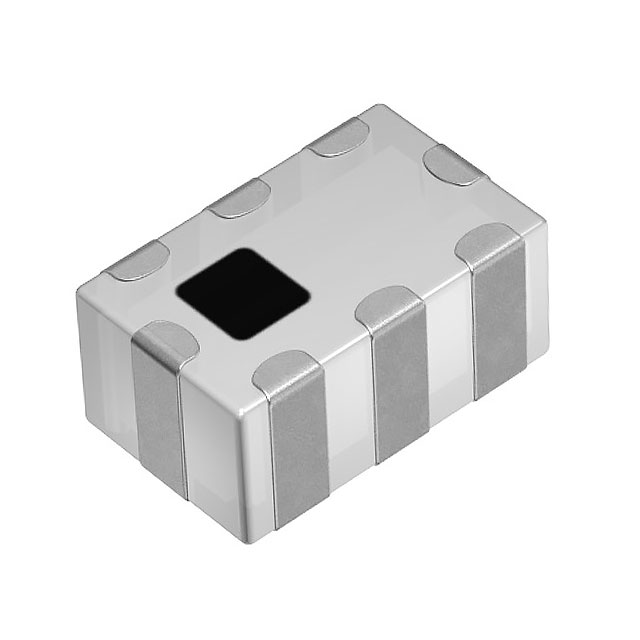

Image shown is a representation only
Manufacturer
Manufacturer No
TPX2012LL95R1525A
Package
0805 (2012 Metric), 8 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TRIPLEXER SMD WLAN GNSS
Detailed Description
RF Triplexer 1.57GHz ~ 1.61GHz / 4.9GHz ~ 5.95GHz 0805 (2012 Metric), 8 PC Pad
Datasheet
Type
Triplexer
Series
2012
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric), 8 PC Pad
Frequency Bands (Low / High)
1.57GHz ~ 1.61GHz / 4.9GHz ~ 5.95GHz
Return Loss (Low Band / High Band)
10.0dB / 10.0dB
Low Band Attenuation (min / max dB)
20.00dB / -
High Band Attenuation (min / max dB)
30.00dB / -
| Attribute | Value |
|---|---|
| Type | Triplexer |
| Series | 2012 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 8 PC Pad |
| Frequency Bands (Low / High) | 1.57GHz ~ 1.61GHz / 4.9GHz ~ 5.95GHz |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB |
| Low Band Attenuation (min / max dB) | 20.00dB / - |
| High Band Attenuation (min / max dB) | 30.00dB / - |
