Step1: Product

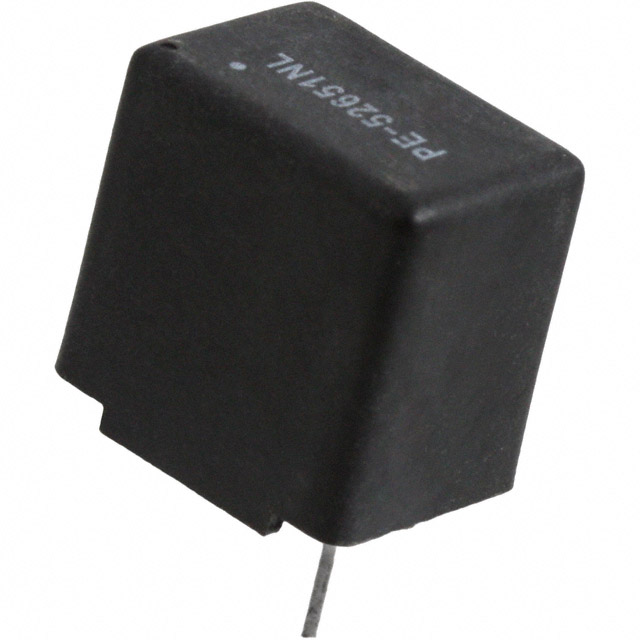

Pulse Electronics PE-52651NL
Image shown is a representation only
Manufacturer
Manufacturer No
PE-52651NL
Package
Radial, Vertical - Corner Terminals
Packaging
Tube
Description
FIXED IND 1MH 500MA 2.6 OHM TH
Detailed Description
1 mH Unshielded Toroidal Inductor 500 mA 2.6Ohm Max Radial, Vertical - Corner Terminals
Datasheet
Mfr
Pulse Electronics
Type
Toroidal
Packaging
Tube
Shielding
Unshielded
Tolerance
±20%
Inductance
1 mH
Mounting Type
Through Hole
Package / Case
Radial, Vertical - Corner Terminals
Size / Dimension
0.710" L x 0.510" W (18.03mm x 12.95mm)
DC Resistance (DCR)
2.6Ohm Max
Current Rating (Amps)
500 mA
Height - Seated (Max)
0.710" (18.03mm)
Operating Temperature
-40°C ~ 130°C
Inductance Frequency - Test
20 kHz
| Attribute | Value |
|---|---|
| Mfr | Pulse Electronics |
| Type | Toroidal |
| Packaging | Tube |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical - Corner Terminals |
| Size / Dimension | 0.710" L x 0.510" W (18.03mm x 12.95mm) |
| DC Resistance (DCR) | 2.6Ohm Max |
| Current Rating (Amps) | 500 mA |
| Height - Seated (Max) | 0.710" (18.03mm) |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 20 kHz |
