Step1: Product
Pulse Electronics PE-51509

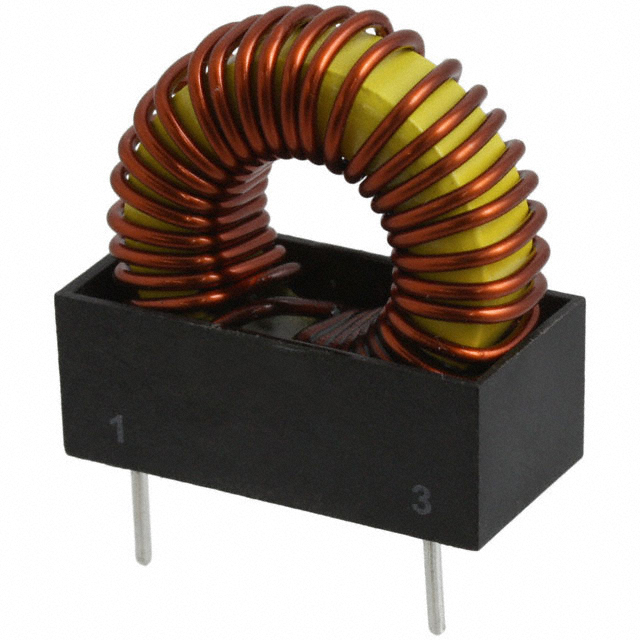

Image shown is a representation only
Manufacturer
Manufacturer No
PE-51509
Package
Radial, Vertical, 4 Leads (Open)
Packaging
Tray
Description
FIXED IND 14UH 10A 9 MOHM TH
Detailed Description
14 µH Unshielded Toroidal Inductor 10 A 9mOhm Max Radial, Vertical, 4 Leads (Open)
DataSheet
Mfr
Pulse Electronics
Type
Toroidal
Packaging
Tray
Shielding
Unshielded
Inductance
14 µH
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
Radial, Vertical, 4 Leads (Open)
Size / Dimension
1.200" L x 0.600" W (30.48mm x 15.24mm)
DC Resistance (DCR)
9mOhm Max
Current Rating (Amps)
10 A
Height - Seated (Max)
1.200" (30.48mm)
Operating Temperature
-40°C ~ 130°C
Inductance Frequency - Test
50 kHz
| Attribute | Value |
|---|---|
| Mfr | Pulse Electronics |
| Type | Toroidal |
| Packaging | Tray |
| Shielding | Unshielded |
| Inductance | 14 µH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Size / Dimension | 1.200" L x 0.600" W (30.48mm x 15.24mm) |
| DC Resistance (DCR) | 9mOhm Max |
| Current Rating (Amps) | 10 A |
| Height - Seated (Max) | 1.200" (30.48mm) |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 50 kHz |
