Step1: Product
Pulse Electronics PD698-3800M243

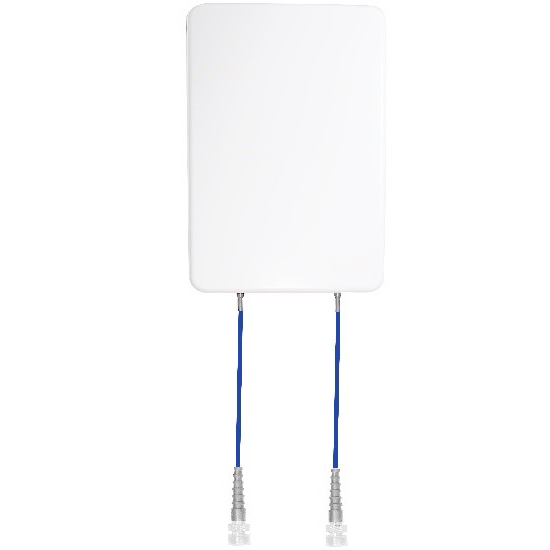

Image shown is a representation only
Manufacturer
Manufacturer No
PD698-3800M243
Packaging
Box
Description
ANT DAS DIR 4G LTE 5G CBRS MIMO
Detailed Description
RF ANTENNA 4G, 5G Module 4.3/10 - Female Wall Mount
DataSheet
Gain
6dBi, 8dBi, 9dBi, 9dBi
VSWR
1.7, 2
Series
Directional DAS
Features
Cable - 300mm
Packaging
Box
Part Status
Active
Power - Max
50 W
Termination
4.3/10 - Female
Antenna Type
Module
Applications
4G, 5G
Height (Max)
2.913" (74.00mm)
Manufacturer
Pulse Electronics
Mounting Type
Wall Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
Number of Bands
4
Ingress Protection
IP50
RF Family/Standard
Cellular
Frequency (Center/Band)
829MHz, 1.45GHz, 2.205GHz, 3.55GHz
| Attribute | Value |
|---|---|
| Gain | 6dBi, 8dBi, 9dBi, 9dBi |
| VSWR | 1.7, 2 |
| Series | Directional DAS |
| Features | Cable - 300mm |
| Packaging | Box |
| Part Status | Active |
| Power - Max | 50 W |
| Termination | 4.3/10 - Female |
| Antenna Type | Module |
| Applications | 4G, 5G |
| Height (Max) | 2.913" (74.00mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Wall Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 4 |
| Ingress Protection | IP50 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 829MHz, 1.45GHz, 2.205GHz, 3.55GHz |
