Step1: Product
Pulse Electronics PA5000.002NLT

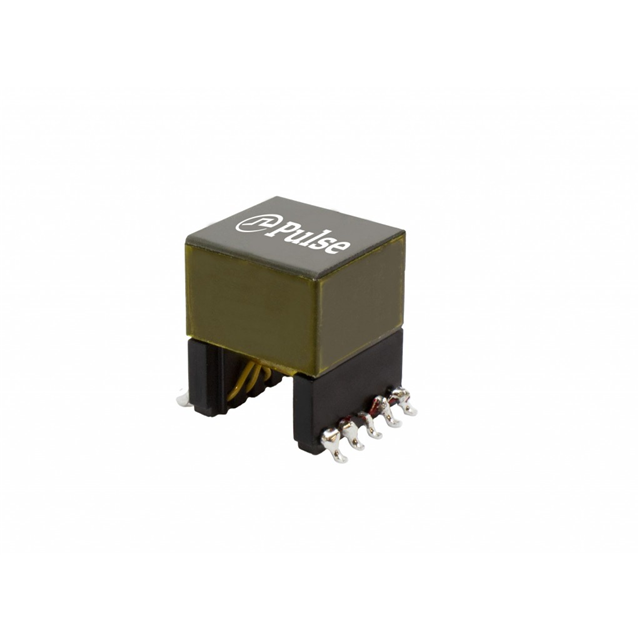

Image shown is a representation only
Manufacturer
Manufacturer No
PA5000.002NLT
Quantity
75
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
XFMR FWD P-P DC/DC CONV 100UH SM
Detailed Description
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation 200kHz Surface Mount
Datasheet
Type
For DC/DC Converters
Style
Wirewound
Series
PA5000.XXXNL
Footprint
0.689" L x 0.531" W (17.50mm x 13.50mm)
Frequency
200kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
Forward, Push-Pull Converters
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Size / Dimension
0.531" L x 0.520" W (13.50mm x 13.20mm)
Voltage - Primary
33 ~ 75V
Voltage - Isolation
3000Vrms
Height - Seated (Max)
0.650" (16.50mm)
Operating Temperature
-40°C ~ 130°C
Inductance @ Frequency
100µH @ 200kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Style | Wirewound |
| Series | PA5000.XXXNL |
| Footprint | 0.689" L x 0.531" W (17.50mm x 13.50mm) |
| Frequency | 200kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Forward, Push-Pull Converters |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.531" L x 0.520" W (13.50mm x 13.20mm) |
| Voltage - Primary | 33 ~ 75V |
| Voltage - Isolation | 3000Vrms |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Operating Temperature | -40°C ~ 130°C |
| Inductance @ Frequency | 100µH @ 200kHz |
