Step1: Product

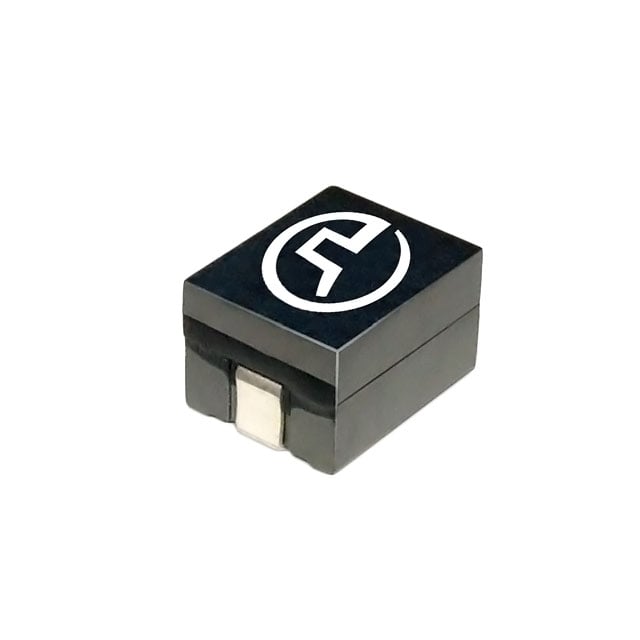

Pulse Electronics PA2202.211NLT
Image shown is a representation only
Manufacturer
Manufacturer No
PA2202.211NLT
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 215NH 36A 0.48 MOHM
Detailed Description
215 nH Unshielded Inductor 36 A 0.48mOhm Nonstandard
DataSheet
Mfr
Pulse Electronics
Series
PA2202.XXXNL
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±15%
Inductance
215 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.476" L x 0.394" W (12.10mm x 10.00mm)
DC Resistance (DCR)
0.48mOhm
Current Rating (Amps)
36 A
Height - Seated (Max)
0.236" (6.00mm)
Operating Temperature
-40°C ~ 130°C
Current - Saturation (Isat)
53A
| Attribute | Value |
|---|---|
| Mfr | Pulse Electronics |
| Series | PA2202.XXXNL |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±15% |
| Inductance | 215 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.476" L x 0.394" W (12.10mm x 10.00mm) |
| DC Resistance (DCR) | 0.48mOhm |
| Current Rating (Amps) | 36 A |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Operating Temperature | -40°C ~ 130°C |
| Current - Saturation (Isat) | 53A |
