Step1: Product

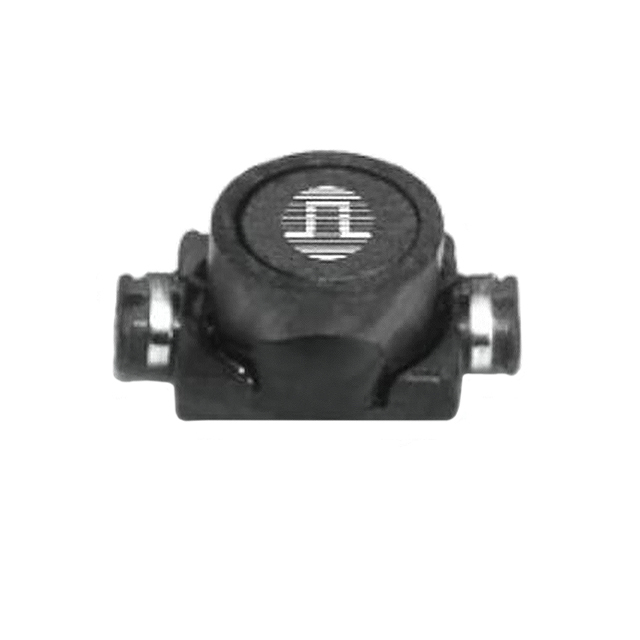

Pulse Electronics P1174.103NLT
Image shown is a representation only
Manufacturer
Manufacturer No
P1174.103NLT
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 10UH 800MA 73 MOHM SMD
Detailed Description
10 µH Shielded Wirewound Inductor 800 mA 73mOhm Max Nonstandard
DataSheet
Mfr
Pulse Electronics
Type
Wirewound
Series
P1174NL
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
10 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.265" L x 0.175" W (6.73mm x 4.45mm)
DC Resistance (DCR)
73mOhm Max
Current Rating (Amps)
800 mA
Height - Seated (Max)
0.110" (2.79mm)
Operating Temperature
-40°C ~ 130°C
Frequency - Self Resonant
31MHz
Current - Saturation (Isat)
800mA
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Pulse Electronics |
| Type | Wirewound |
| Series | P1174NL |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 10 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.265" L x 0.175" W (6.73mm x 4.45mm) |
| DC Resistance (DCR) | 73mOhm Max |
| Current Rating (Amps) | 800 mA |
| Height - Seated (Max) | 0.110" (2.79mm) |
| Operating Temperature | -40°C ~ 130°C |
| Frequency - Self Resonant | 31MHz |
| Current - Saturation (Isat) | 800mA |
| Inductance Frequency - Test | 100 kHz |
