Step1: Product

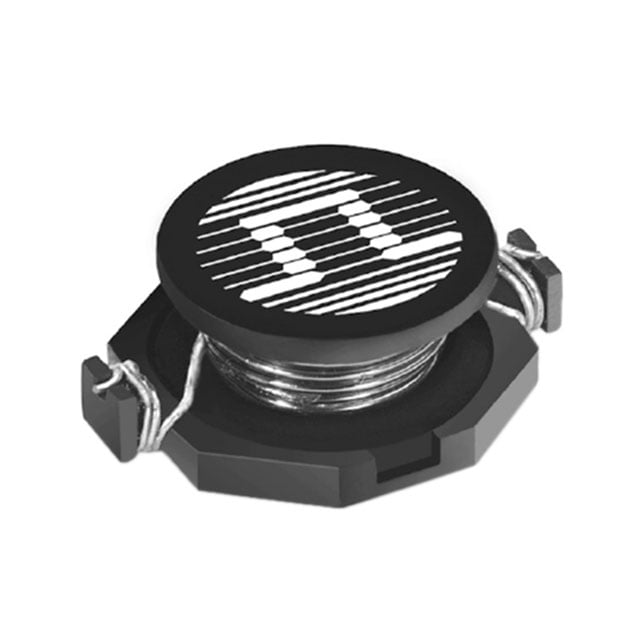

Pulse Electronics P0751.333NL
Image shown is a representation only
Manufacturer
Manufacturer No
P0751.333NL
Package
Nonstandard
Packaging
Tray
Description
FIXED IND 33UH 2A 120 MOHM SMD
Detailed Description
33 µH Unshielded Wirewound Inductor 2 A 120mOhm Max Nonstandard
DataSheet
Mfr
Pulse Electronics
Type
Wirewound
Series
P0751NL
Packaging
Tray
Shielding
Unshielded
Tolerance
±20%
Inductance
33 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.510" L x 0.370" W (12.95mm x 9.40mm)
DC Resistance (DCR)
120mOhm Max
Current Rating (Amps)
2 A
Height - Seated (Max)
0.215" (5.45mm)
Operating Temperature
-40°C ~ 130°C
Current - Saturation (Isat)
2A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Pulse Electronics |
| Type | Wirewound |
| Series | P0751NL |
| Packaging | Tray |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 33 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| DC Resistance (DCR) | 120mOhm Max |
| Current Rating (Amps) | 2 A |
| Height - Seated (Max) | 0.215" (5.45mm) |
| Operating Temperature | -40°C ~ 130°C |
| Current - Saturation (Isat) | 2A |
| Inductance Frequency - Test | 100 kHz |
