Step1: Product

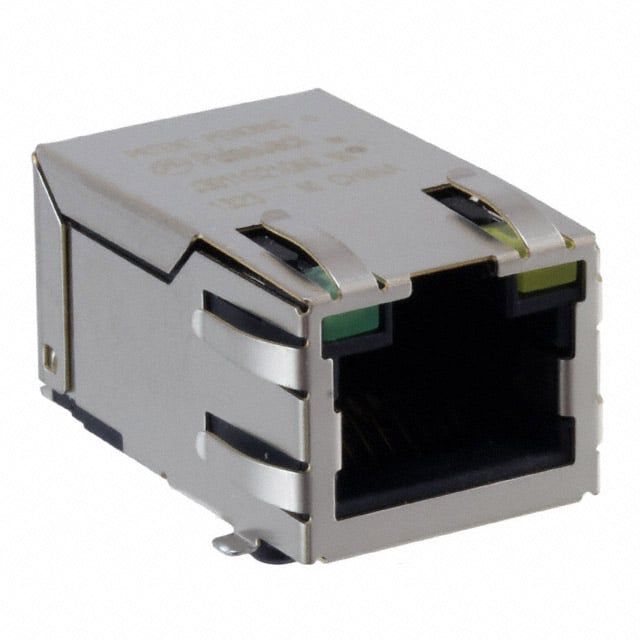

Pulse Electronics J3011G21DNLT
Image shown is a representation only
Manufacturer
Manufacturer No
J3011G21DNLT
Quantity
216
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN JACK 1PORT SURFACE MOUNT
Detailed Description
1 Port RJ45 Surface Mount 10/100 Base-TX, AutoMDIX
DataSheet
Series
PULSEJACK™ J3
Features
Board Guide
LED Color
Green - Yellow
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Orientation
90° Angle (Right)
Part Status
Active
Termination
Solder
Applications
10/100 Base-TX, AutoMDIX
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Gold
Number of Rows
1
Number of Ports
1
Shield Material
Brass
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic
Height Above Board
0.536" (13.61mm)
Operating Temperature
0°C ~ 70°C
Contact Finish Thickness
15.0µin (0.38µm)
Number of Cores per Jack
4
| Attribute | Value |
|---|---|
| Series | PULSEJACK™ J3 |
| Features | Board Guide |
| LED Color | Green - Yellow |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Termination | Solder |
| Applications | 10/100 Base-TX, AutoMDIX |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Height Above Board | 0.536" (13.61mm) |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Number of Cores per Jack | 4 |
