Step1: Product

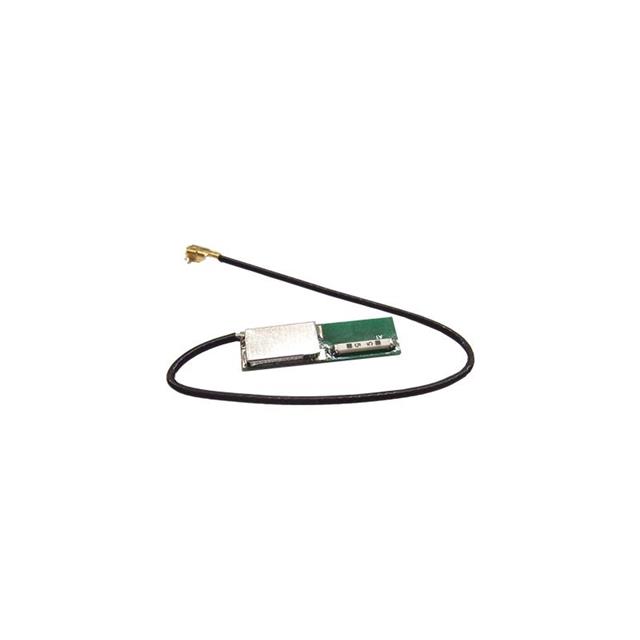

Pulse Electronics ANT8010JLC1B1516A
Image shown is a representation only
Manufacturer
Manufacturer No
ANT8010JLC1B1516A
Packaging
Box
Description
ANTENNA PATCH 1.6GHZ GPS/GLO
Detailed Description
RF ANTENNA GLONASS, GPS Ceramic Patch I-PEX
DataSheet
Gain
3.62dBi, 3.71dBi
VSWR
2
Series
8010
Features
Cable - 100mm, LNA, Filter
Packaging
Box
Part Status
Active
Termination
I-PEX
Antenna Type
Ceramic Patch
Applications
GLONASS, GPS
Height (Max)
0.075" (1.90mm)
Manufacturer
Pulse Electronics
Frequency Group
UHF (1GHz ~ 2GHz)
Number of Bands
2
RF Family/Standard
Navigation
Base Product Number
ANT8010
Frequency (Center/Band)
1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 3.62dBi, 3.71dBi |
| VSWR | 2 |
| Series | 8010 |
| Features | Cable - 100mm, LNA, Filter |
| Packaging | Box |
| Part Status | Active |
| Termination | I-PEX |
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GPS |
| Height (Max) | 0.075" (1.90mm) |
| Manufacturer | Pulse Electronics |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Base Product Number | ANT8010 |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
