Step1: Product

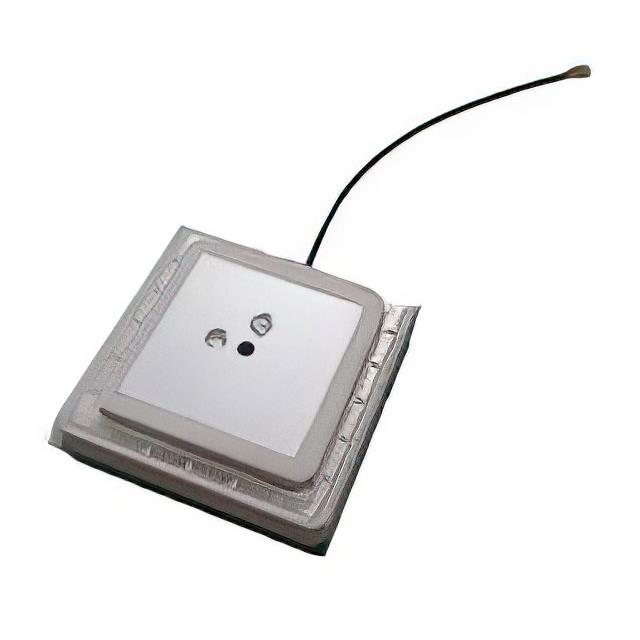

Pulse Electronics ANT4050JB01BGN25A
Image shown is a representation only
Manufacturer
Manufacturer No
ANT4050JB01BGN25A
Packaging
Box
Description
ANT GNSS+L2+L STACK
Detailed Description
RF ANTENNA GNSS Ceramic Patch I-PEX Connector Mount
DataSheet
Gain
3dBic, 0.57dBic, 2.96dBic, 3.69dBic, 1.71dBic
VSWR
3
Series
4050
Features
Cable - 100mm, LNA, Filter
Packaging
Box
Part Status
Active
Termination
I-PEX
Antenna Type
Ceramic Patch
Applications
GNSS
Height (Max)
0.520" (13.20mm)
Manufacturer
Pulse Electronics
Mounting Type
Connector Mount
Frequency Group
Wide Band
Number of Bands
5
RF Family/Standard
Navigation
Base Product Number
ANT4050
Frequency (Center/Band)
1.176GHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 3dBic, 0.57dBic, 2.96dBic, 3.69dBic, 1.71dBic |
| VSWR | 3 |
| Series | 4050 |
| Features | Cable - 100mm, LNA, Filter |
| Packaging | Box |
| Part Status | Active |
| Termination | I-PEX |
| Antenna Type | Ceramic Patch |
| Applications | GNSS |
| Height (Max) | 0.520" (13.20mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Number of Bands | 5 |
| RF Family/Standard | Navigation |
| Base Product Number | ANT4050 |
| Frequency (Center/Band) | 1.176GHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz |
